SKU: BK2526-EU
BK2526 Budget Drawn Cup Needle Roller Bearing with One Closed End 25x32x26mm
BK2526 Budget Drawn Cup Needle Roller Bearing with One Closed End 25x32x26mm
Regular price
€8,10
ex VAT
Regular price
Sale price
€8,10
ex VAT
In stock
Price Break
10+
€6,17
19+
€5,82
29+
€5,75
39+
€5,68
49+
€5,61
74+
€5,55
99+
€5,20
199+
€5,13
249+
€5,06
499+
€4,99
999+
€4,85
Description
Description
|
Budget BK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 32mm
- Width:
- 26mm

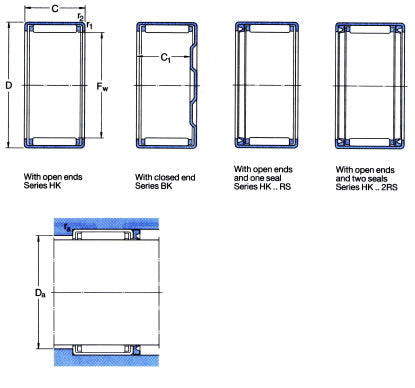

Technical
Technical
| Fw | 25mm |
|---|---|
| D | 32mm |
| C | 26mm |
| Dynamic load C | 24200 N |
| Static load Co | 45000 N |
| Fatigue load limit Pu | 5500 N |
| Speed in grease | 7500 rpm |
| Speed in oil | 11000 rpm |
| C1 | 23.3mm |
| r1r2 min | 0.8mm |
| Da max | 27mm |
| ra max | 0.8mm |
| Inner ring | IR20x25x26.5 |
| Seal | G25x32x4 |
| Weight | 48 g |
