SKU: BK3016-NTN

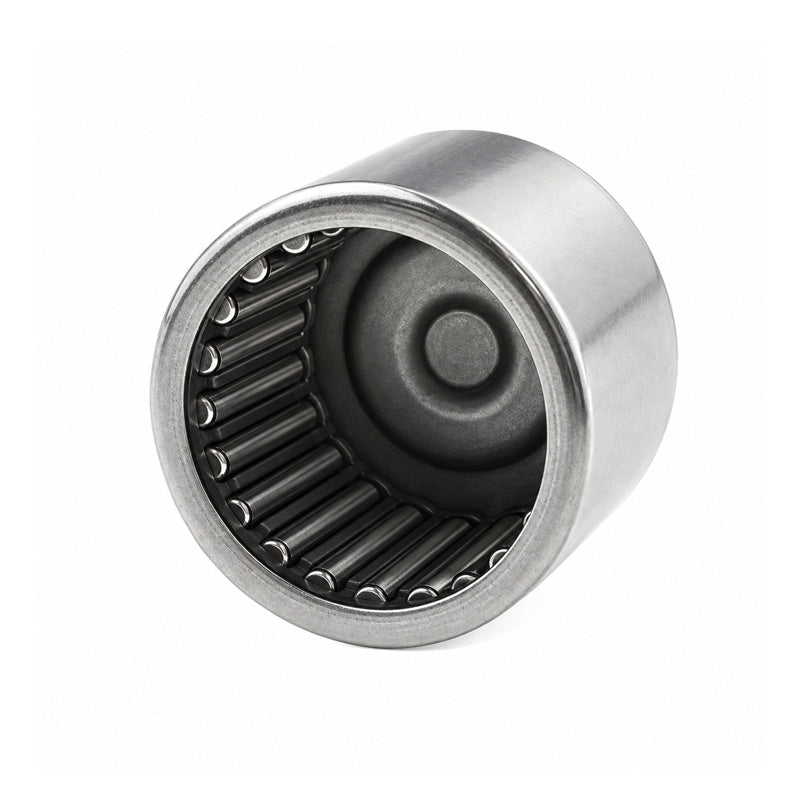

NTN BK3016 Drawn Cup Needle Roller Bearing with Closed End 30x37x16mm
NTN BK3016 Drawn Cup Needle Roller Bearing with Closed End 30x37x16mm
Regular price
€11,96
ex VAT
Regular price
Sale price
€11,96
ex VAT
In stock
Price Break
10+
€10,64
19+
€10,05
29+
€9,93
39+
€9,81
49+
€9,69
74+
€9,57
99+
€8,97
199+
€8,85
249+
€8,73
499+
€8,61
999+
€8,37
Couldn't load pickup availability
Description
Description
BK Drawn Cup Type Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 37mm
- Width:
- 16mm
Technical
Technical
| Fw - Under rollers diameter | 30mm |
|---|---|
| D - Outside diameter | 37mm |
| C - Width of bearing, drawn cup or outer ring | 16mm |
| C1 - Max drawn cup closed end thickness | 2.7mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR25X30X17 |
| Cr - Dynamic load rating | 18.1 kN |
| C0r - Static load rating | 30 kN |
| N - Grease lubrication limit speed | 5500 tr/min |
| N - Oil lubrication limit speed | 8000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
