SKU: BK4020-NTN

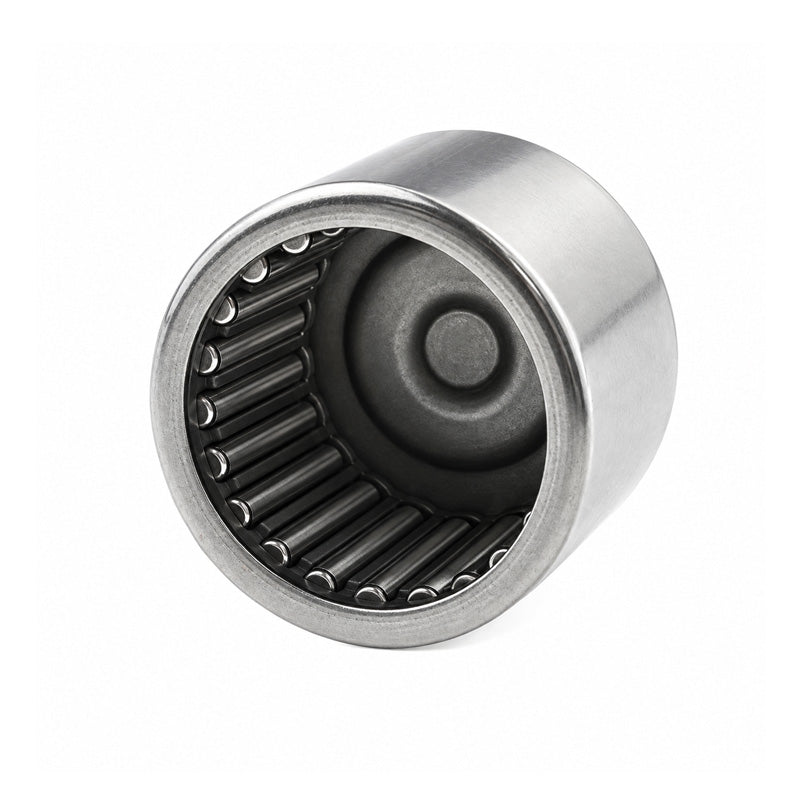

NTN BK4020 Drawn Cup Needle Roller Bearing with Closed End 40x47x20mm
NTN BK4020 Drawn Cup Needle Roller Bearing with Closed End 40x47x20mm
Regular price
€8,81
ex VAT
Regular price
Sale price
€8,81
ex VAT
In stock
Price Break
3+
€6,71
4+
€6,33
9+
€6,26
19+
€6,18
49+
€6,11
99+
€6,03
499+
€5,66
999+
€5,58
1999+
€5,50
2999+
€5,43
4999+
€5,28
Description
Description
BK Drawn Cup Type Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 47mm
- Width:
- 20mm
Technical
Technical
| Fw - Under rollers diameter | 40mm |
|---|---|
| D - Outside diameter | 47mm |
| C - Width of bearing, drawn cup or outer ring | 20mm |
| C1 - Max drawn cup closed end thickness | 2.7mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR35X40X20.5 |
| Cr - Dynamic load rating | 25.9 kN |
| C0r - Static load rating | 52.5 kN |
| N - Grease lubrication limit speed | 4000 tr/min |
| N - Oil lubrication limit speed | 6000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
