SKU: BP3S-140-495-TRI-SNR

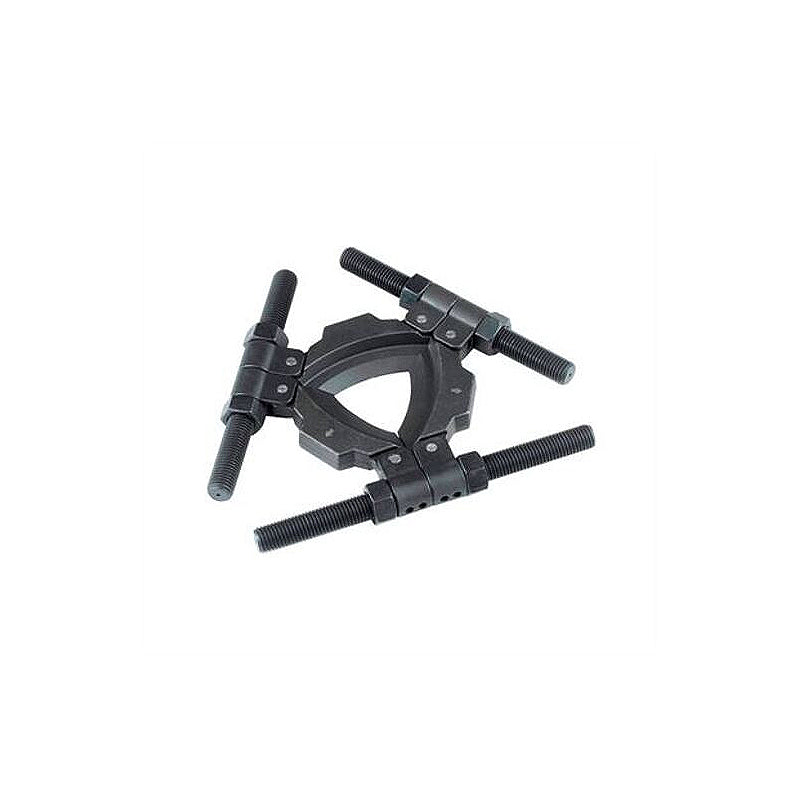

SNR BP3S 140-495 Tri-Section Pulling Plate 140x495x61mm - Allow 2-3 Days
SNR BP3S 140-495 Tri-Section Pulling Plate 140x495x61mm - Allow 2-3 Days
Regular price
€3.620,19
ex VAT
Regular price
Sale price
€3.620,19
ex VAT
In stock
Price Break
10+
€3.221,97
19+
€3.040,96
29+
€3.004,76
39+
€2.968,56
49+
€2.932,35
74+
€2.896,15
99+
€2.715,14
199+
€2.678,94
249+
€2.642,74
499+
€2.606,54
999+
€2.534,13
Couldn't load pickup availability
Description
Description
SNR BP3S Tri-Section Pulling Plates: These Tri-Section Pulling Plates offer a wide range of adjustments which are also available in four dimensions. Capable of holding parts with a diameter from 26mm up to 495mm. These Pulling Plates are to be used with the suitable SNR Three-Arm Puller which can be determined by required size and power.
Benefits: High-quality and Wide range of adjustment.
- Brand / Quality:
- SNR - High Quality
Technical
Technical
| Capacity | 30000kg |
|---|---|
| Minimum Shaft Diameter A1 | 140mm |
| Maximum Shaft Diameter | 495mm |
| Max Spread B | 660mm |
| Length D | 600mm |
| Thread E | 1 inch - 14 UNF |
| Thickness F | 61mm |
| Material | Forged Steel Alloy |
| Weight | 41kg |
