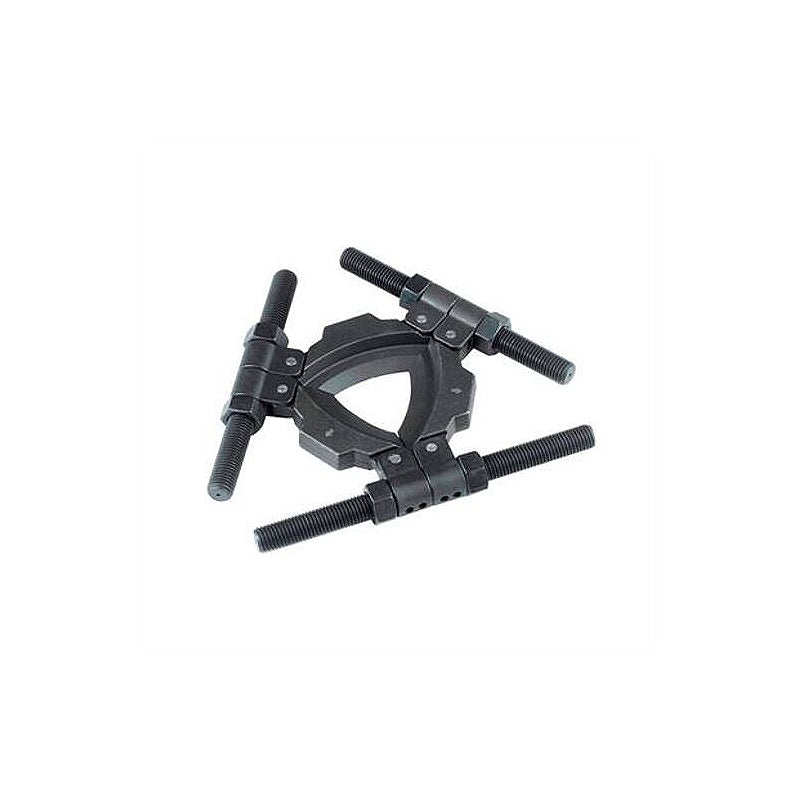

SNR BP3S 90-340 Tri-Section Pulling Plate 90x340x45mm - Allow 2-3 Days
SNR BP3S 90-340 Tri-Section Pulling Plate 90x340x45mm - Allow 2-3 Days
Regular price
€1.253,61
ex VAT
Regular price
Sale price
€1.253,61
ex VAT
In stock
Price Break
10+
€1.115,71
19+
€1.053,03
29+
€1.040,50
39+
€1.027,96
49+
€1.015,42
74+
€1.002,89
99+
€940,21
199+
€927,67
249+
€915,14
499+
€902,60
999+
€877,53
Couldn't load pickup availability
Description
Description
SNR BP3S Tri-Section Pulling Plates: These Tri-Section Pulling Plates offer a wide range of adjustments which are also available in four dimensions. Capable of holding parts with a diameter from 26mm up to 495mm. These Pulling Plates are to be used with the suitable SNR Three-Arm Puller which can be determined by required size and power.
Benefits: High-quality and Wide range of adjustment.
- Brand / Quality:
- SNR - High Quality
Technical
Technical

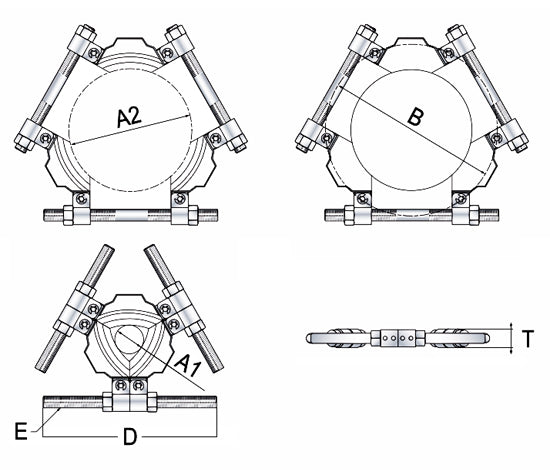

| Capacity | 12000kg |
|---|---|
| Minimum Shaft Diameter A1 | 90mm |
| Maximum Shaft Diameter | 340mm |
| Max Spread B | 460mm |
| Length D | 430mm |
| Thread E | 7/8 inch - 16 UNF |
| Thickness F | 45mm |
| Material | Forged Steel Alloy |
| Weight | 16.5kg |
