SKU: BR.202816

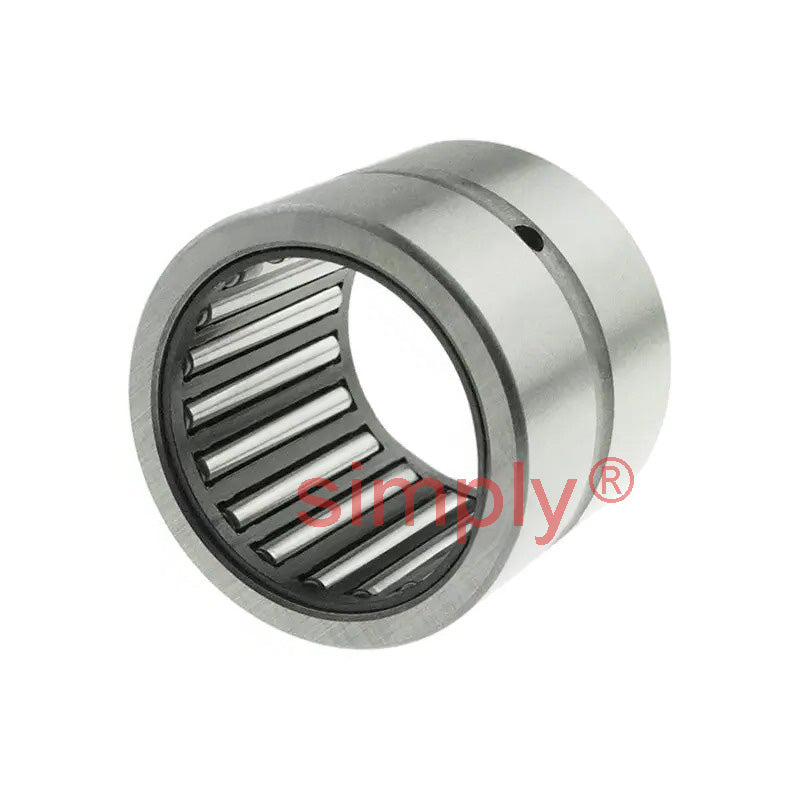

BR202816 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-1/4x1-3/4x1 inch
BR202816 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-1/4x1-3/4x1 inch
Regular price
€19,04
ex VAT
Regular price
Sale price
€19,04
ex VAT
Equivalent to: HJ202816 HJ-202816 MR20N MR-20-N SJ7234 NCS2016
In stock
Price Break
10+
€14,50
20+
€13,68
30+
€13,52
40+
€13,36
50+
€13,20
75+
€13,03
100+
€12,22
200+
€12,06
250+
€11,89
500+
€11,73
1000+
€11,40
Description
Description
|
Imperial Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Equivalent: HJ202816 HJ-202816 MR20N MR-20-N SJ7234 NCS2016
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Width:
- 25.4mm = 1 inch
Technical
Technical
| Fw | 1-1/4 inch |
|---|---|
| D | 1-3/4 inch |
| C | 1 inch |
| Dynamic Load Cor | 36000 N |
| Static Load Cr | 53500 N |
| Weight | 0.11 kg |
