SKU: BR.223020

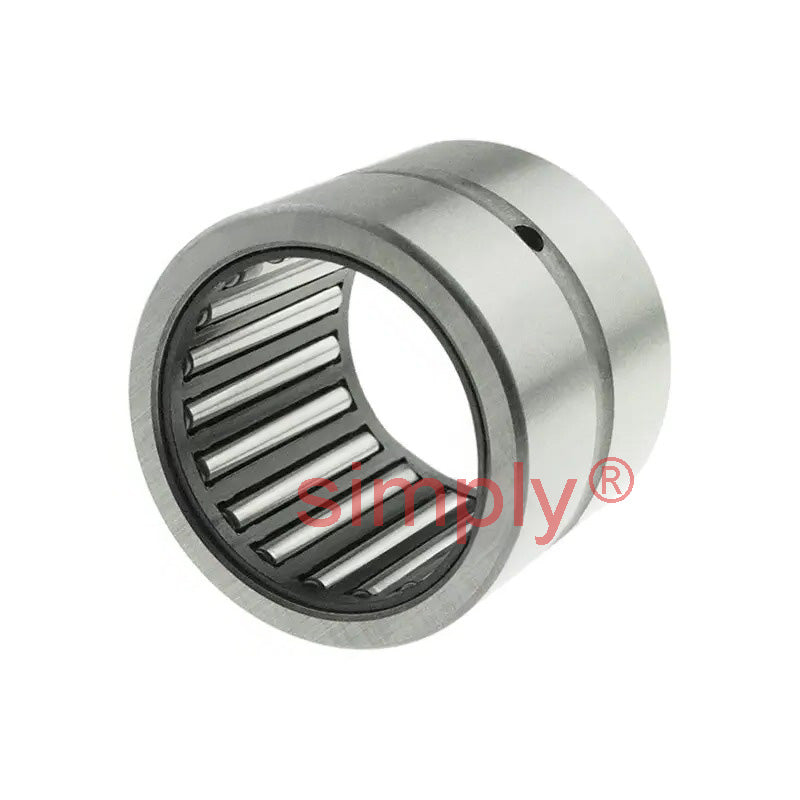

BR223020 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-3/8x1-7/8x1-1/4 inch
BR223020 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-3/8x1-7/8x1-1/4 inch
Regular price
€20,38
ex VAT
Regular price
Sale price
€20,38
ex VAT
Equivalent to: HJ223020 HJ-223020 MR22 MR-22 SJ7255 NCS2220
In stock
Price Break
10+
€18,14
19+
€17,12
29+
€16,92
39+
€16,71
49+
€16,51
74+
€16,30
99+
€15,29
199+
€15,08
249+
€14,88
499+
€14,67
999+
€14,27
Couldn't load pickup availability
Description
Description
|
Imperial Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Equivalent: HJ223020 HJ-223020 MR22 MR-22 SJ7255 NCS2220
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Outside Diameter:
- 47.63mm = 1.875 (1-7/8) inch
- Width:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Fw | 1-3/8 inch |
|---|---|
| D | 1-7/8 inch |
| C | 1-1/4 inch |
| Dynamic Load Cor | 47700 N |
| Static Load Cr | 78900 N |
| Weight | 0.149 kg |
