SKU: BR.243316

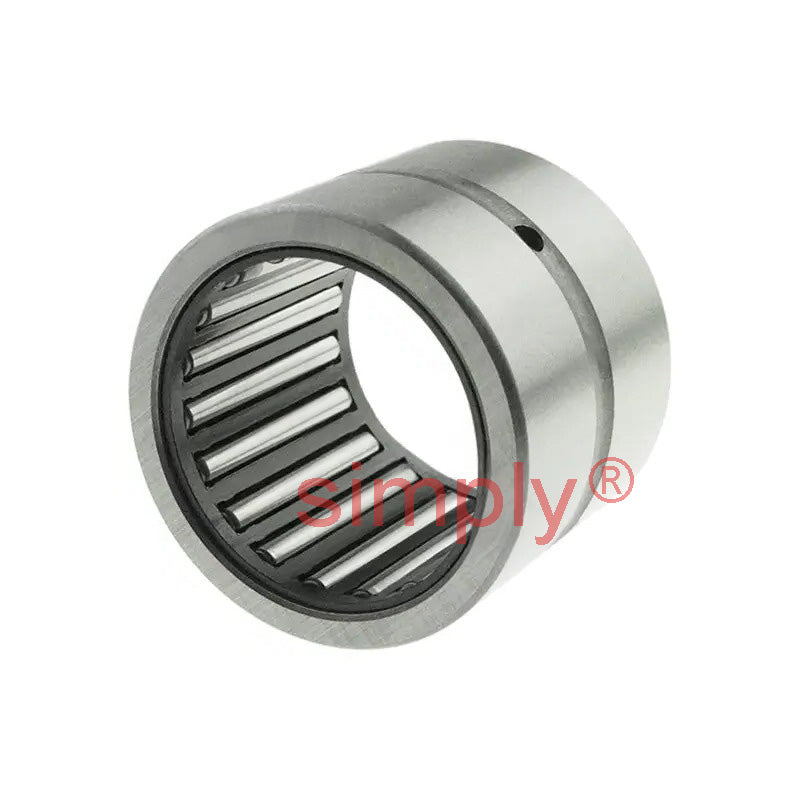

BR243316 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-1/2x2-1/16x1 inch
BR243316 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-1/2x2-1/16x1 inch
Regular price
€20,68
ex VAT
Regular price
Sale price
€20,68
ex VAT
Equivalent to: HJ243316 HJ-243316 MR24N MR-24-N SJ7274 NCS2416
In stock
Price Break
10+
€18,41
19+
€17,37
29+
€17,16
39+
€16,96
49+
€16,75
74+
€16,54
99+
€15,51
199+
€15,30
249+
€15,10
499+
€14,89
999+
€14,48
Couldn't load pickup availability
Description
Description
|
Imperial Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Equivalent: HJ243316 HJ-243316 MR24N MR-24-N SJ7274 NCS2416
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 52.39mm = 2.063 (2-1/16) inch
- Width:
- 25.4mm = 1 inch
Technical
Technical
| Fw | 1-1/2 inch |
|---|---|
| D | 2-1/16 inch |
| C | 1 inch |
| Dynamic Load Cor | 43700 N |
| Static Load Cr | 66900 N |
| Weight | 0.149 kg |
