SKU: BR.263520

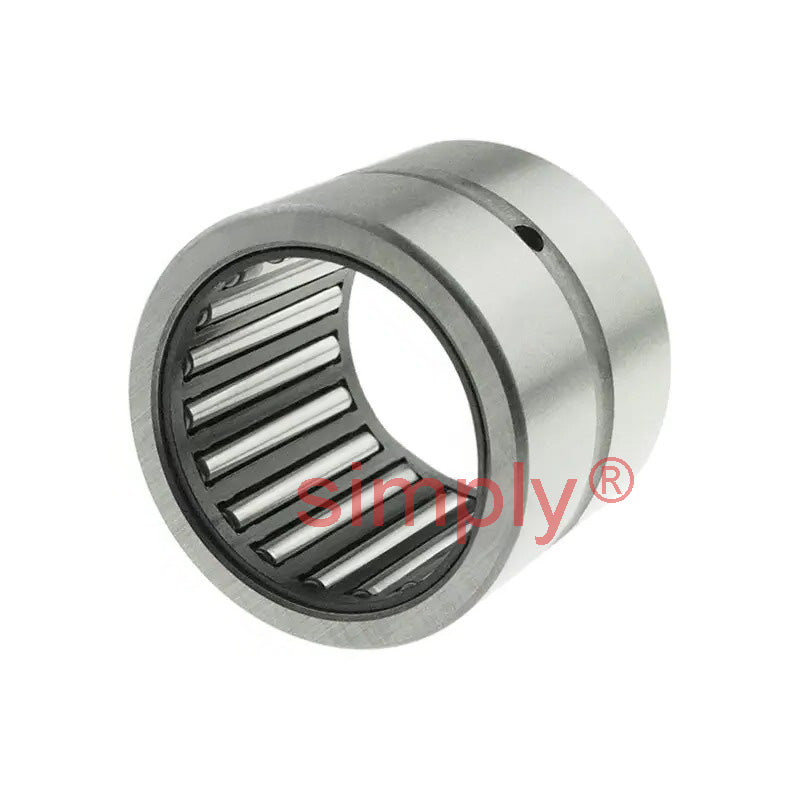

BR263520 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-5/8x2-3/16x1-1/4 inch
BR263520 Machined Type Imperial Needle Roller Bearing Without Inner Ring 1-5/8x2-3/16x1-1/4 inch
Regular price
€22,38
ex VAT
Regular price
Sale price
€22,38
ex VAT
Equivalent to: HJ263520 HJ-263520 MR26 MR-26 SJ7295 NCS2620
In stock
Price Break
10+
€17,04
20+
€16,08
30+
€15,89
40+
€15,70
50+
€15,51
75+
€15,32
100+
€14,36
200+
€14,17
250+
€13,98
500+
€13,78
1000+
€13,40
Description
Description
|
Imperial Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Equivalent: HJ263520 HJ-263520 MR26 MR-26 SJ7295 NCS2620
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Outside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Width:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Fw | 1-5/8 inch |
|---|---|
| D | 2-3/16 inch |
| C | 1-1/4 inch |
| Dynamic Load Cor | 55600 N |
| Static Load Cr | 93400 N |
| Weight | 0.199 kg |
