SKU: BR.324120

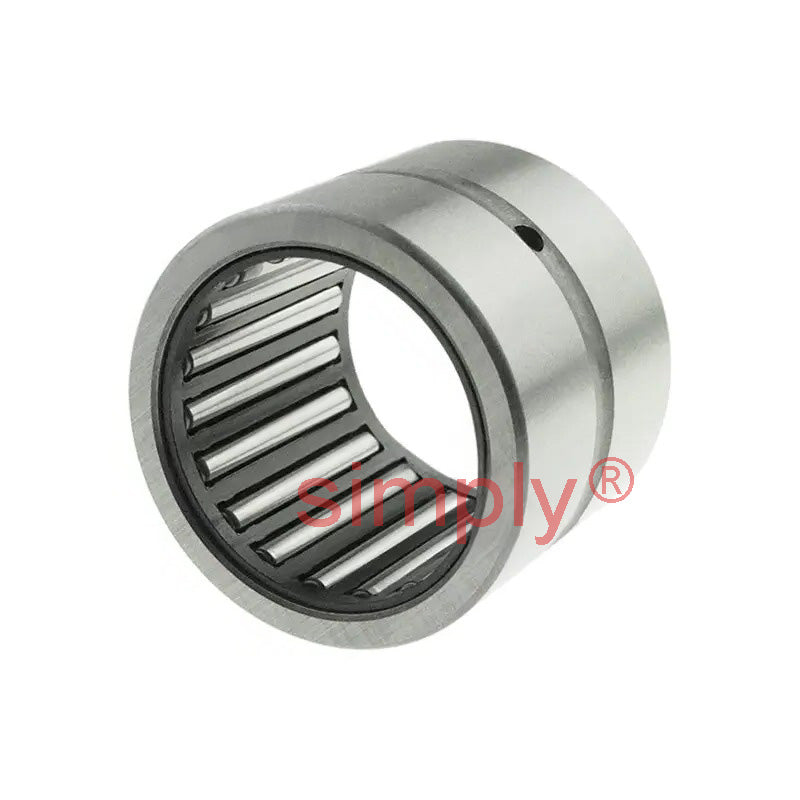

BR324120 Machined Type Imperial Needle Roller Bearing Without Inner Ring 2x2-9/16x1-1/4 inch
BR324120 Machined Type Imperial Needle Roller Bearing Without Inner Ring 2x2-9/16x1-1/4 inch
Regular price
€24,90
ex VAT
Regular price
Sale price
€24,90
ex VAT
Equivalent to: HJ324120 HJ-324120 MR32 MR-32 SJ7355 NCS3220
In stock
Price Break
10+
€18,96
20+
€17,90
30+
€17,69
40+
€17,47
50+
€17,26
75+
€17,05
100+
€15,98
200+
€15,77
250+
€15,56
500+
€15,34
1000+
€14,92
Description
Description
|
Imperial Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Equivalent: HJ324120 HJ-324120 MR32 MR-32 SJ7355 NCS3220
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 65.09mm = 2.563 (2-9/16) inch
- Width:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Fw | 2 inch |
|---|---|
| D | 2-9/16 inch |
| C | 1-1/4 inch |
| Dynamic Load Cor | 63200 N |
| Static Load Cr | 118000 N |
| Weight | 0.24 kg |
