SKU: BR.445624

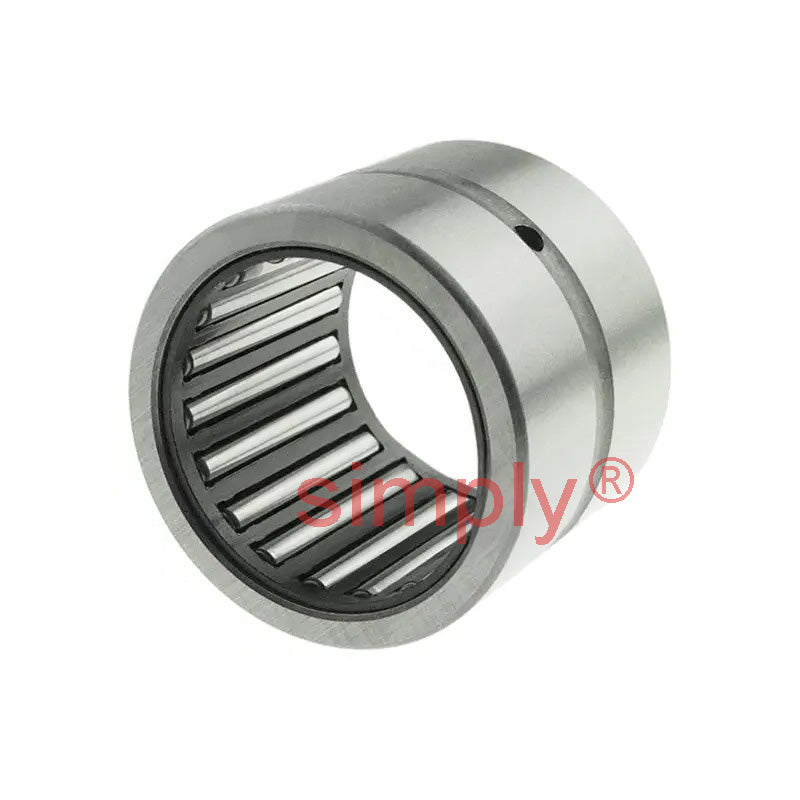

BR445624 Machined Type Imperial Needle Roller Bearing Without Inner Ring 2-3/4x3-1/2x1-1/2 inch
BR445624 Machined Type Imperial Needle Roller Bearing Without Inner Ring 2-3/4x3-1/2x1-1/2 inch
Regular price
€54,50
ex VAT
Regular price
Sale price
€54,50
ex VAT
Equivalent to: HJ445624 HJ-445624 MR44N MR-44-N SJ8476 NCS4424
In stock
Price Break
10+
€48,51
19+
€45,78
29+
€45,24
39+
€44,69
49+
€44,15
74+
€43,60
99+
€40,88
199+
€40,33
249+
€39,79
499+
€39,24
999+
€38,15
Couldn't load pickup availability
Description
Description
|
Imperial Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Equivalent: HJ445624 HJ-445624 MR44N MR-44-N SJ8476 NCS4424
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 69.85mm = 2.75 (2-3/4) inch
- Outside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Width:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Fw | 2-3/4 inch |
|---|---|
| D | 3-1/2 inch |
| C | 1-1/2 inch |
| Dynamic Load Cor | 98700 N |
| Static Load Cr | 189000 N |
| Weight | 0.51 kg |
