SKU: BR.526828

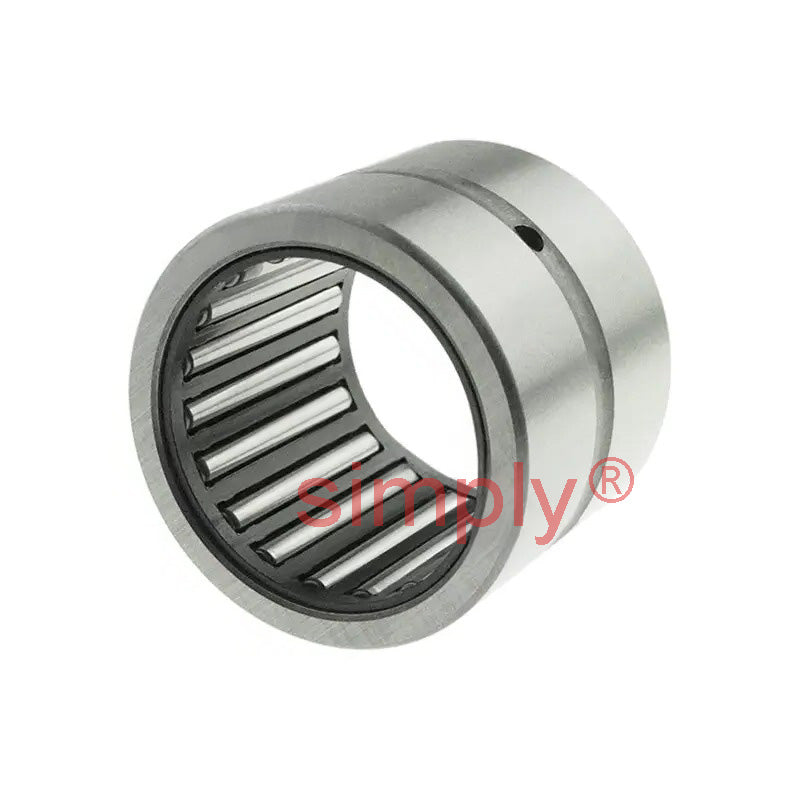

BR526828 Machined Type Imperial Needle Roller Bearing Without Inner Ring 3-1/4x4-1/4x1-3/4 inch
BR526828 Machined Type Imperial Needle Roller Bearing Without Inner Ring 3-1/4x4-1/4x1-3/4 inch
Regular price
€84,65
ex VAT
Regular price
Sale price
€84,65
ex VAT
Equivalent to: HJ526828 HJ-526828 MR52 MR-52 SJ9567 NCS5228
In stock
Price Break
10+
€64,47
20+
€60,85
30+
€60,13
40+
€59,40
50+
€58,68
75+
€57,95
100+
€54,33
200+
€53,61
250+
€52,88
500+
€52,16
1000+
€50,71
Description
Description
|
Imperial Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Equivalent: HJ526828 HJ-526828 MR52 MR-52 SJ9567 NCS5228
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Outside Diameter:
- 107.95mm = 4.25 (4-1/4) inch
- Width:
- 44.45mm = 1.75 (1-3/4) inch
Technical
Technical
| Fw | 3-1/4 inch |
|---|---|
| D | 4-1/4 inch |
| C | 1-3/4 inch |
| Dynamic Load Cor | 141000 N |
| Static Load Cr | 259000 N |
| Weight | 0.99 kg |
