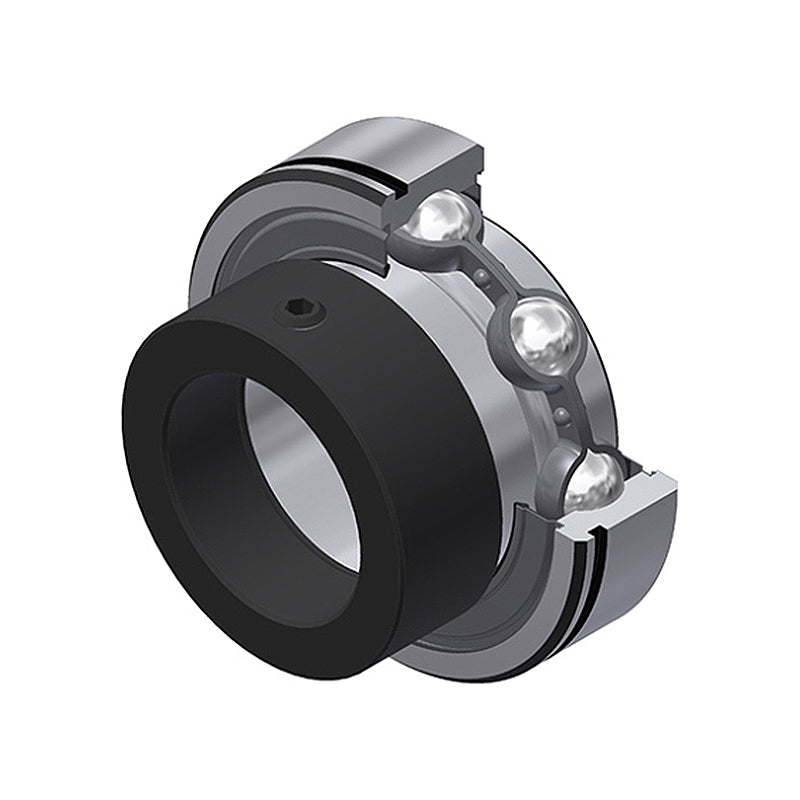

SNR CES210 Metric Flatback Grooved Parallel Outer Bearing Insert 50mm Bore 90mm Outside Diameter with Eccentric Collar

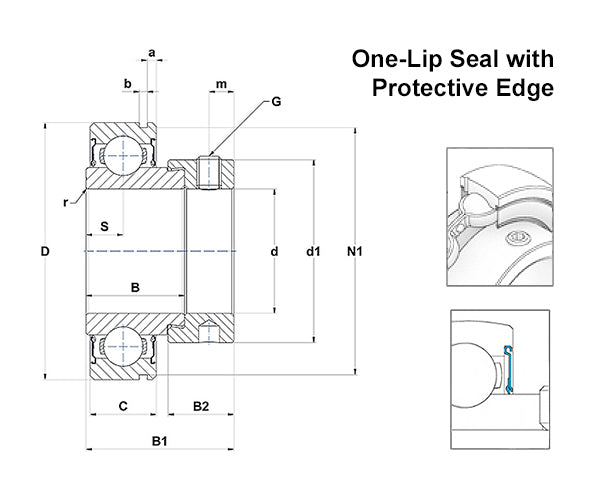

SNR CES Flatback Parallel Outer Bearing Insert with Eccentric Collar: This bearing insert is designed for specific applications requiring axial fixation without relubrication capabilities, unsuitable for standard housings with spherical bearing seats. It features a cylindrical outer ring with a snap ring groove, and a narrow inner ring design. The steel inserts include a single lip seal on each side and a zinc-coated sheet steel retainer with a vulcanized NBR seal. The axially preloaded seal lip is positioned behind a protective edge, ensuring durability under normal environmental conditions and accommodating medium to high rotation speeds.
Benefits: High-quality brand, high-performance, precision-engineered

Brand / Quality:

SNR - High Quality

Thread Size:

M8x1

Inside Diameter:

50mm

Outside Diameter:

90mm

Width:

43.7mm

Style:

CES
