SKU: CFPMR12-PBC

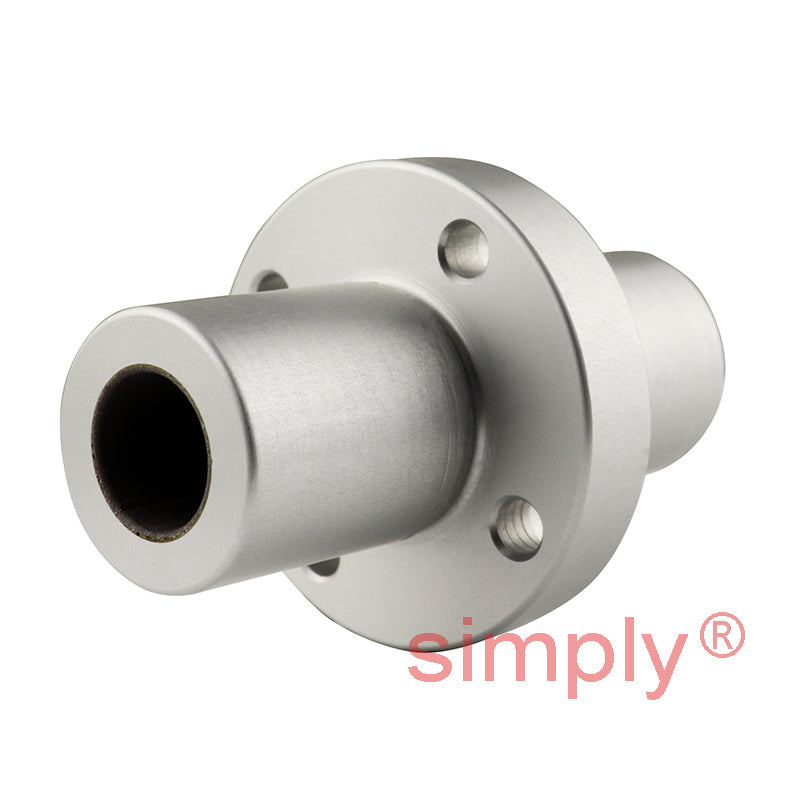

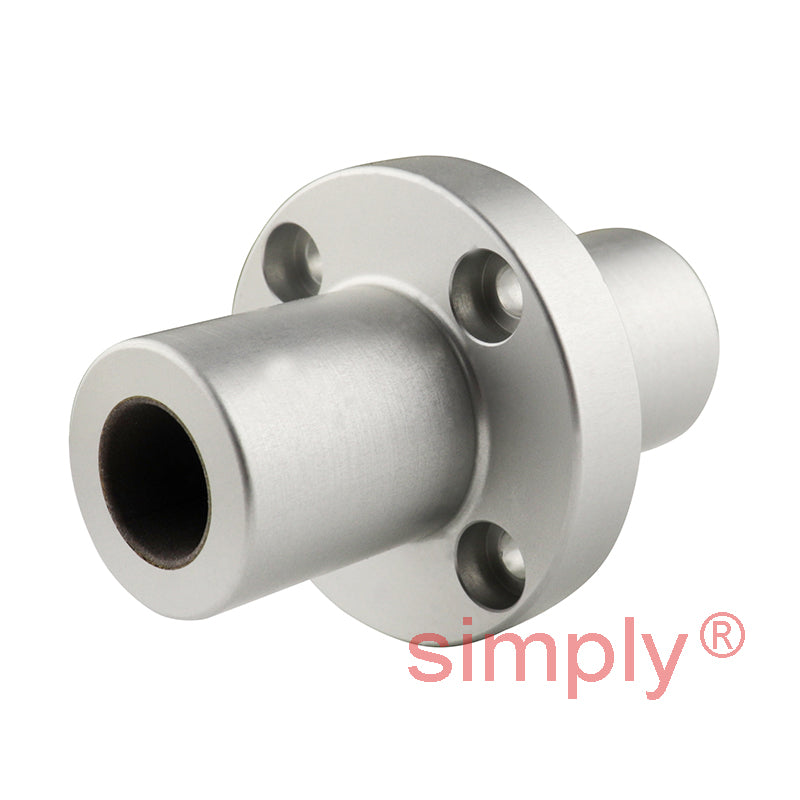

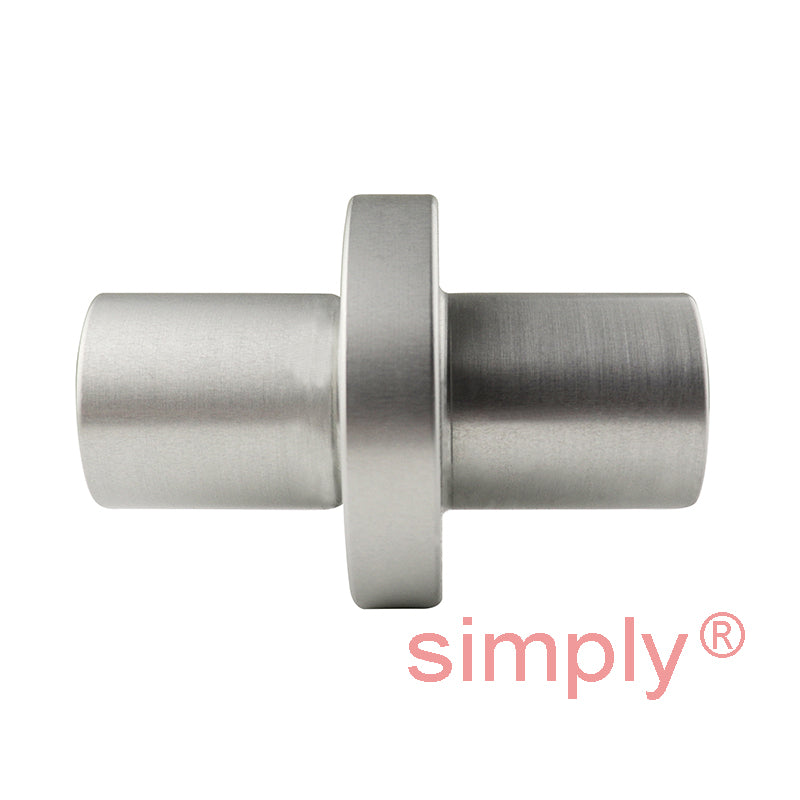

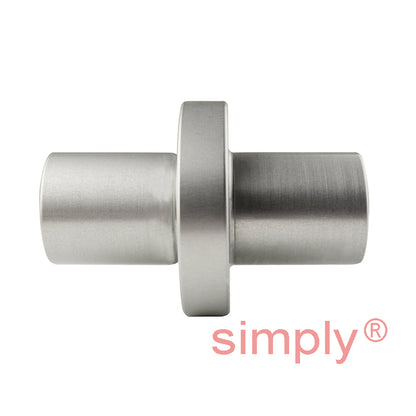

PBC CFPMR12 Metric Round Centre Flanged Double Ball Bushing with FrelonGold 12x41.8x61mm
PBC CFPMR12 Metric Round Centre Flanged Double Ball Bushing with FrelonGold 12x41.8x61mm
Regular price
€137,11
ex VAT
Regular price
Sale price
€137,11
ex VAT
In stock
Price Break
10+
€122,03
19+
€115,17
29+
€113,80
39+
€112,43
49+
€111,06
74+
€109,69
99+
€102,83
199+
€101,46
249+
€100,09
499+
€98,72
999+
€95,98
Couldn't load pickup availability
Description
Description
PBC CFPMR Metric Round Centre Flanged Double Bearing with FrelonGold: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 41.8mm
- Length:
- 61mm
Technical
Technical

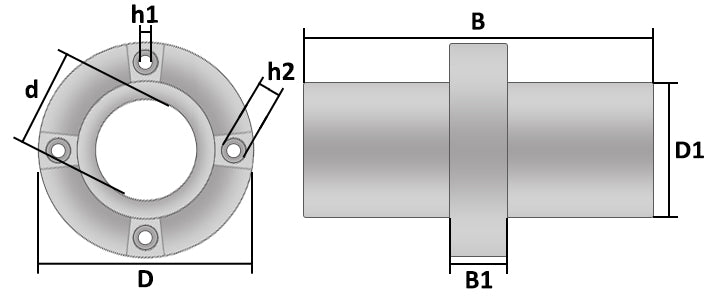

| Nominal Bore Size | 11.9mm |
|---|---|
| d | 12mm |
| D | 41.8mm |
| B | 61mm |
| D1 | 22mm |
| B1 | 8.8mm |
| h1 | 4.3mm |
| h2 | 7.2mm |
| Max Static Load | 7.976kN |
| Weight | 0.004kg |
