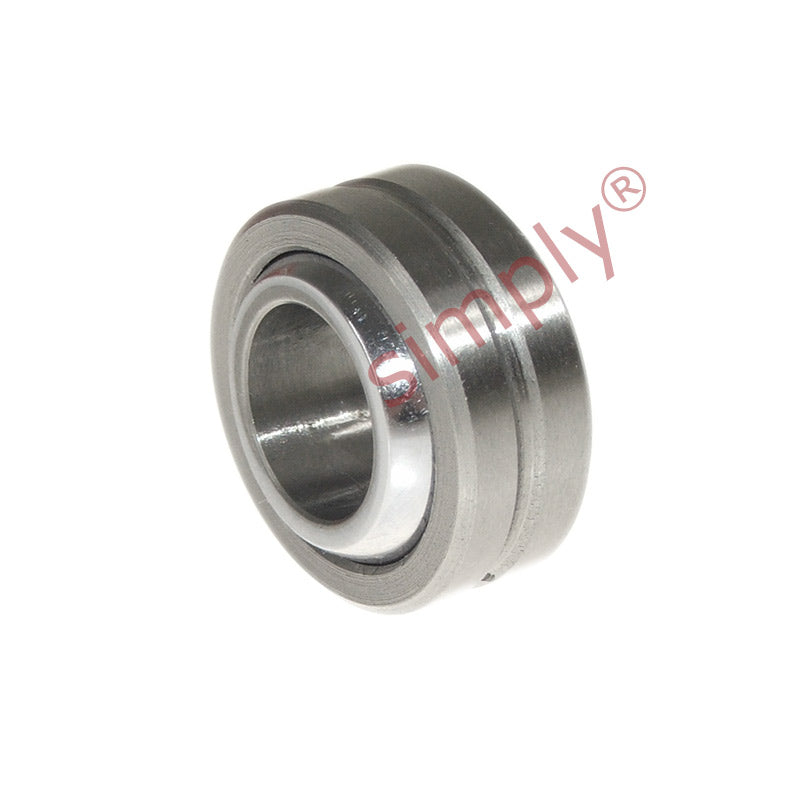

COM09T PTFE Lined Imperial Spherical Plain Bearing 9/16 inch Bore

Name: COM09T PTFE Lined Imperial Spherical Plain Bearing 9/16 inch Bore
Brand: Simply Spherical Plain
SKU: COM09T-EU
Price: 9.35 EUR
Availability: InStock

€9,35 ex VAT

Sale Sold out

In stock

Price Break

10+ €7,12

19+ €6,72

29+ €6,64

39+ €6,56

49+ €6,48

74+ €6,40

99+ €6,00

199+ €5,92

249+ €5,84

499+ €5,76

999+ €5,60

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Spherical Plain Bearing: COM T series is 2 piece (assembled and not separable) imperial range of general purpose spherical plain bearings suitable for high shock loads and medium industrial /mechanical load applications requiring low friction, they do not require maintenance. The T design incorporates a thin PTFE fabric between the ball and the outer ring. Dimensions are suited to auto-sport and racing applications.
Material Specification: Outer Raceway steel 100Cr6, Ball Bearing steel 100Cr6, case hardened & electro-less Nickel plated.
Temperature Range Specification -54 deg C to +121 deg C

Brand / Quality:: Simply Spherical Plain - Economy Quality
Inside Diameter:: 14.29mm = 0.563 (9/16) inch
Outside Diameter:: 27.78mm = 1.094 (1-3/32) inch
Width:: 11.11mm = 0.437 (7/16) inch

Technical

b	9/16 inch
w	9/16 inch
h	7/16 inch
D	1-3/32 inch
O	0.71 inch
Static load	73967 N
