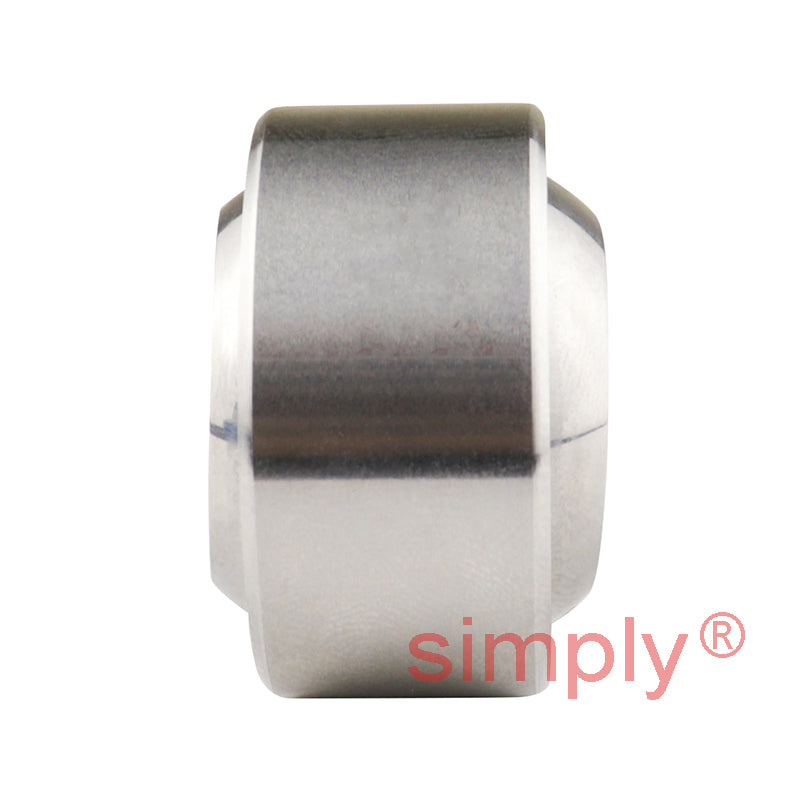

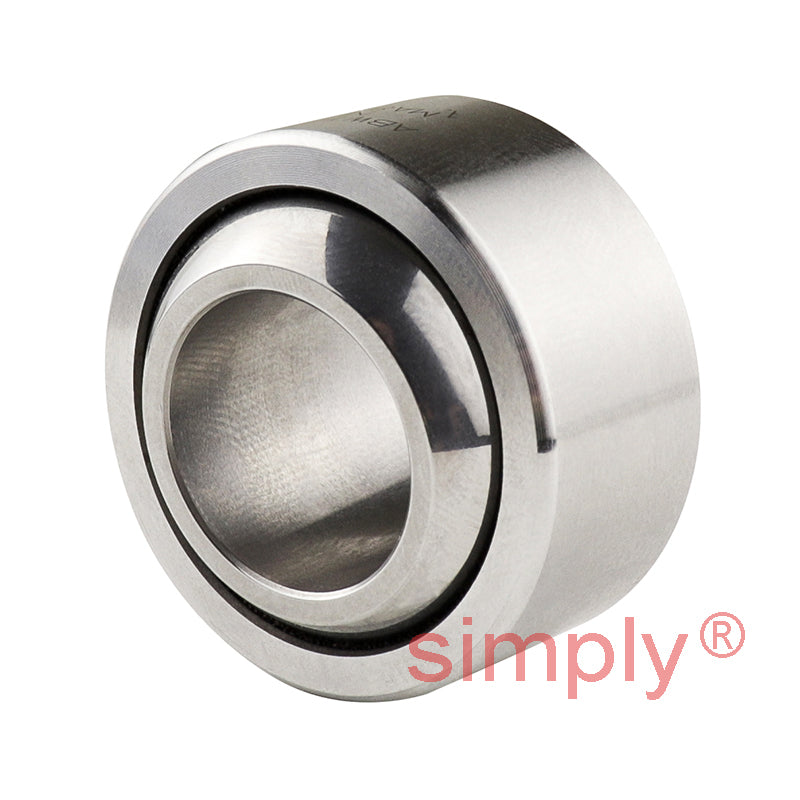

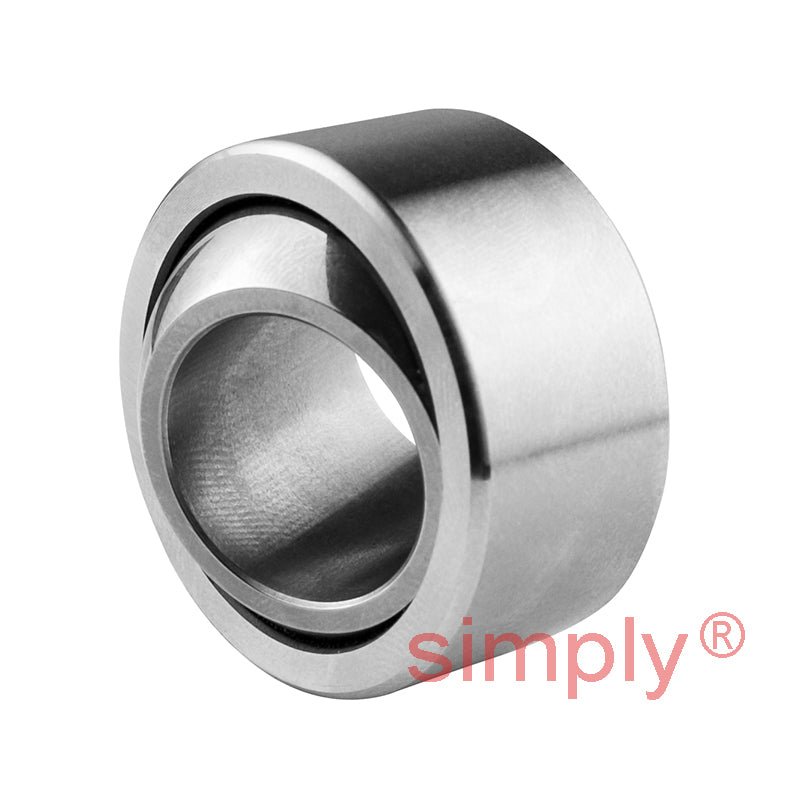

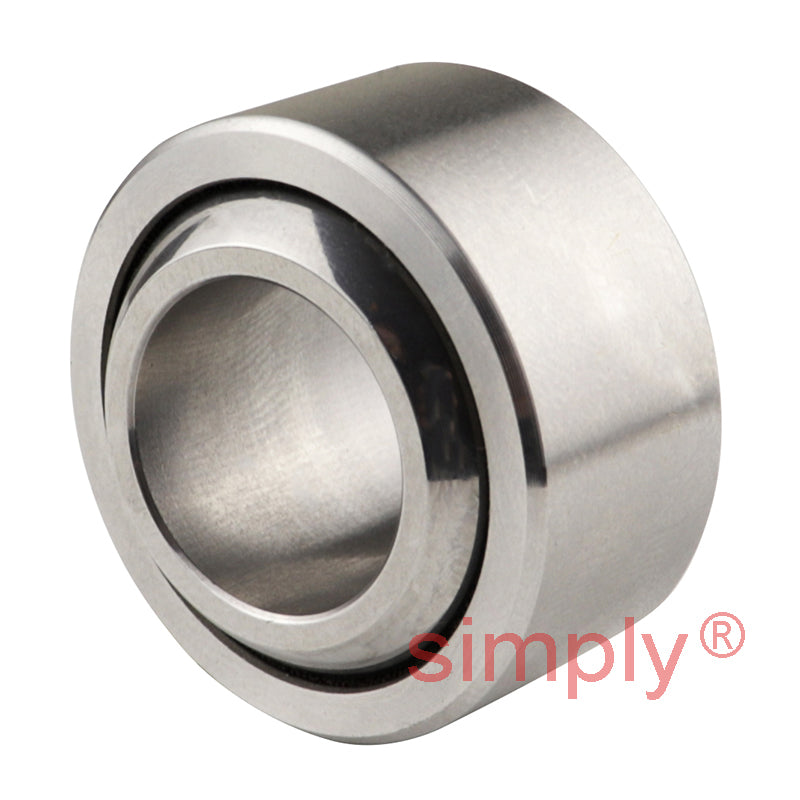

COM14T PTFE Lined Imperial Spherical Plain Bearing 7/8 inch Bore

Name: COM14T PTFE Lined Imperial Spherical Plain Bearing 7/8 inch Bore
Brand: Simply Spherical Plain
SKU: COM14T-EU
Price: 15.47 EUR
Availability: InStock

€15,47 ex VAT

Sale Sold out

In stock

Price Break

10+ €11,78

19+ €11,12

29+ €10,99

39+ €10,86

49+ €10,72

74+ €10,59

99+ €9,93

199+ €9,80

249+ €9,66

499+ €9,53

999+ €9,27

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Spherical Plain Bearing: COM T series is 2 piece (assembled and not separable) imperial range of general purpose spherical plain bearings suitable for high shock loads and medium industrial /mechanical load applications requiring low friction, they do not require maintenance. The T design incorporates a thin PTFE fabric between the ball and the outer ring. Dimensions are suited to auto-sport and racing applications.
Material Specification: Outer Raceway steel 100Cr6, Ball Bearing steel 100Cr6, case hardened & electro-less Nickel plated.
Temperature Range Specification -54 deg C to +121 deg C

Brand / Quality:: Simply Spherical Plain - Economy Quality
Inside Diameter:: 22.23mm = 0.875 (7/8) inch
Outside Diameter:: 39.69mm = 1.563 (1-9/16) inch
Width:: 17.86mm = 0.703 (45/64) inch

Technical

b	7/8 inch
w	7/8 inch
h	45/64 inch
D	1-9/16 inch
O	0.98 inch
Static load	186639 N
