SKU: CSA.207-22

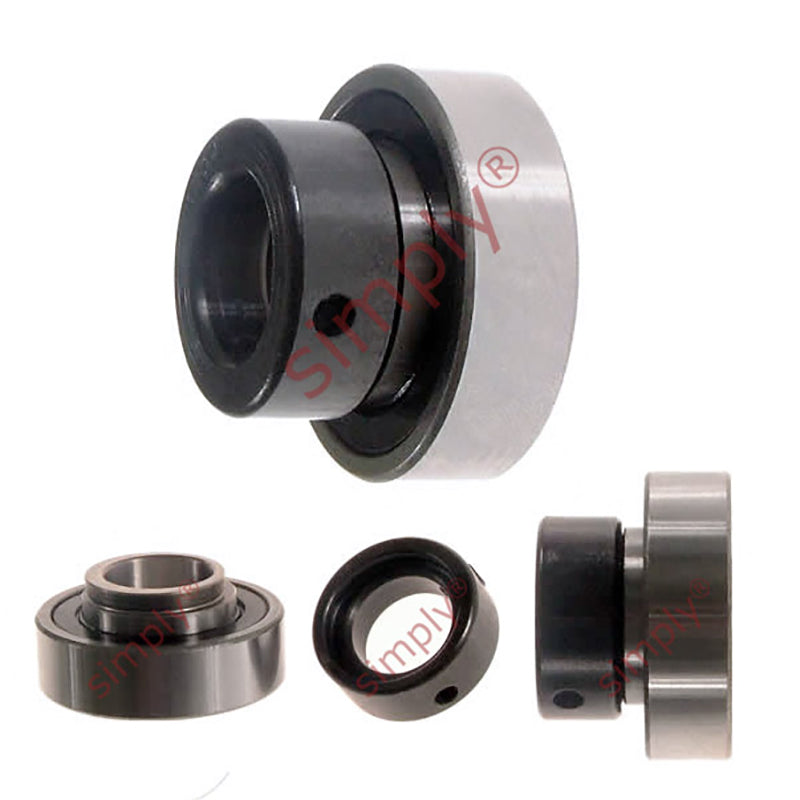

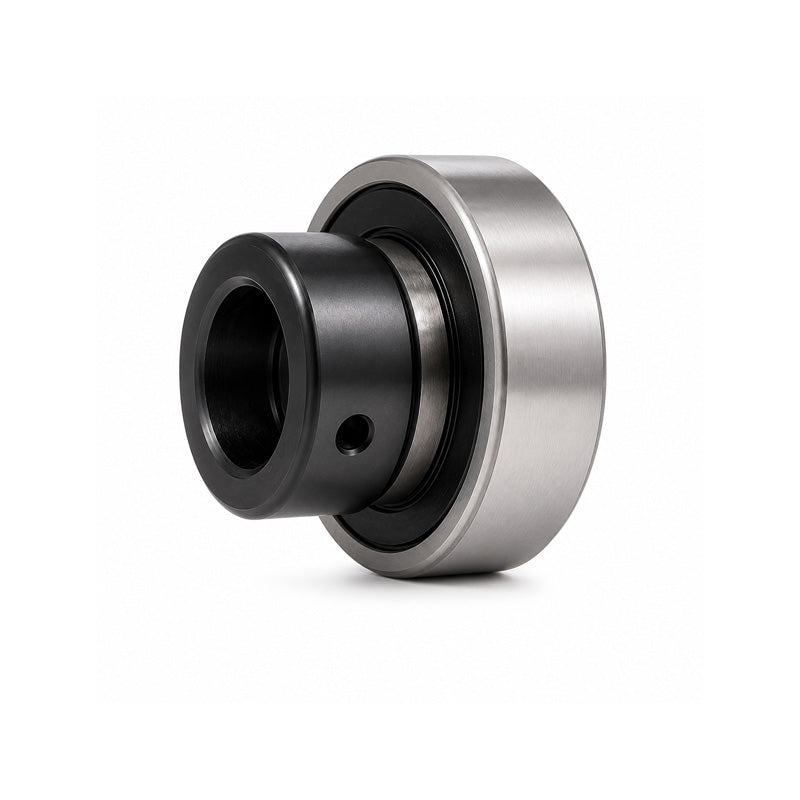

CSA207-22 Imperial Bearing Insert with Locking Collar 1-3/8 inch Bore 72mm Outside Dia
CSA207-22 Imperial Bearing Insert with Locking Collar 1-3/8 inch Bore 72mm Outside Dia
Regular price
€22,06
ex VAT
Regular price
Sale price
€22,06
ex VAT
In stock
Price Break
3+
€16,80
4+
€15,86
9+
€15,67
19+
€15,48
49+
€15,29
99+
€15,10
499+
€14,16
999+
€13,97
1999+
€13,78
2999+
€13,59
4999+
€13,22
Share this product
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Outside Diameter:
- 72mm
- Style:
- CSA
Technical
Technical
| d | 1-3/8 inch |
|---|---|
| Be | 17mm |
| D | 72mm |
| z | 25.4mm |
| n | 8.5mm |
| m | 16.9mm |
| Bi | 38.9mm |
| k | 55.6mm |
| H | 17.5mm |
| G | 6.5mm |
| h | 5.5mm |
| Grub screw | 5/16"-24UNF |
| Weight | 0.5 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
