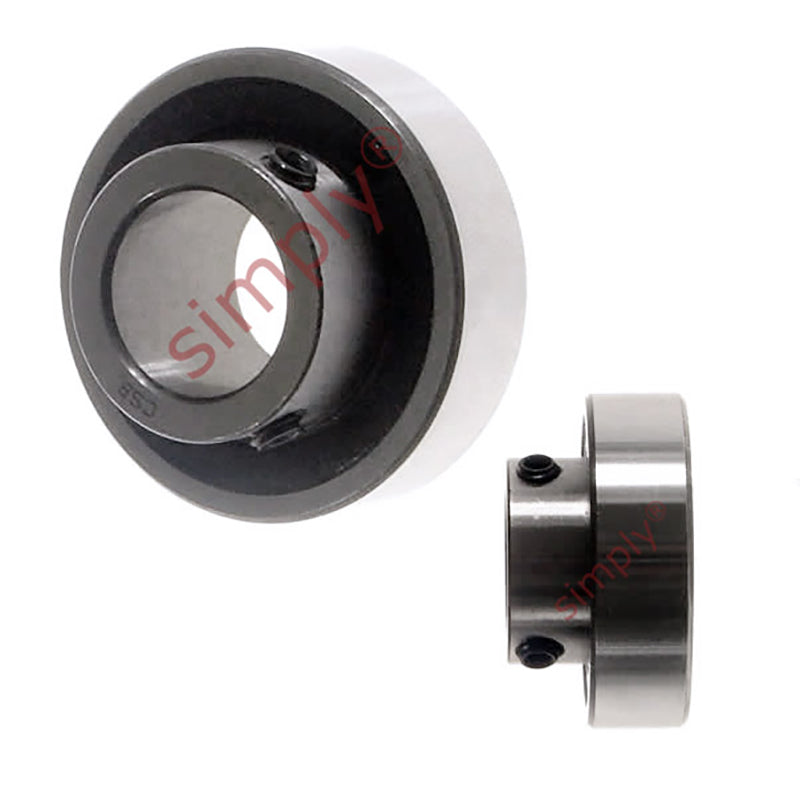

CSB209 Metric Bearing Insert with 45mm Bore 85mm Outside Dia
CSB209 Metric Bearing Insert with 45mm Bore 85mm Outside Dia
Regular price
€15,79
ex VAT
Regular price
Sale price
€15,79
ex VAT
In stock
Price Break
10+
€14,05
19+
€13,26
29+
€13,11
39+
€12,95
49+
€12,79
74+
€12,63
99+
€11,84
199+
€11,68
249+
€11,53
499+
€11,37
999+
€11,05
Couldn't load pickup availability
Description
Description
|

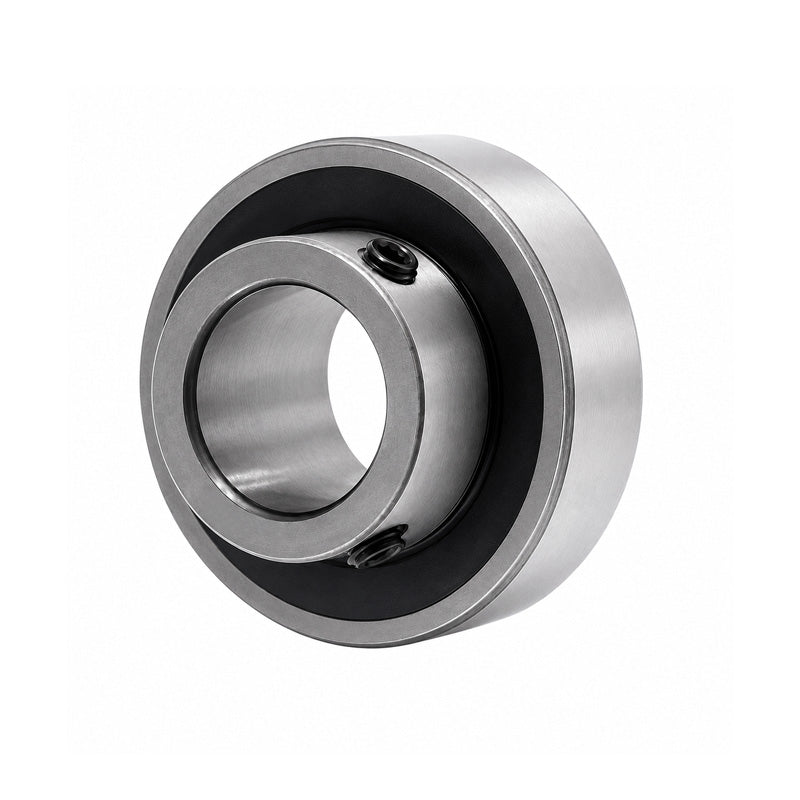

CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Style:
- CSB
Technical
Technical
| d | 45mm |
|---|---|
| Be | 19mm |
| D | 85mm |
| Bi | 41.2mm |
| n | 9.5mm |
| m | 31.7mm |
| G | 8.2mm |
| h | 6.3mm |
| Grub screw | M8X1.0 |
| Weight | 0.8 kg |
| Dynamic load | 3260 kgf |
| Static load | 2450 kgf |
