SKU: CUC207

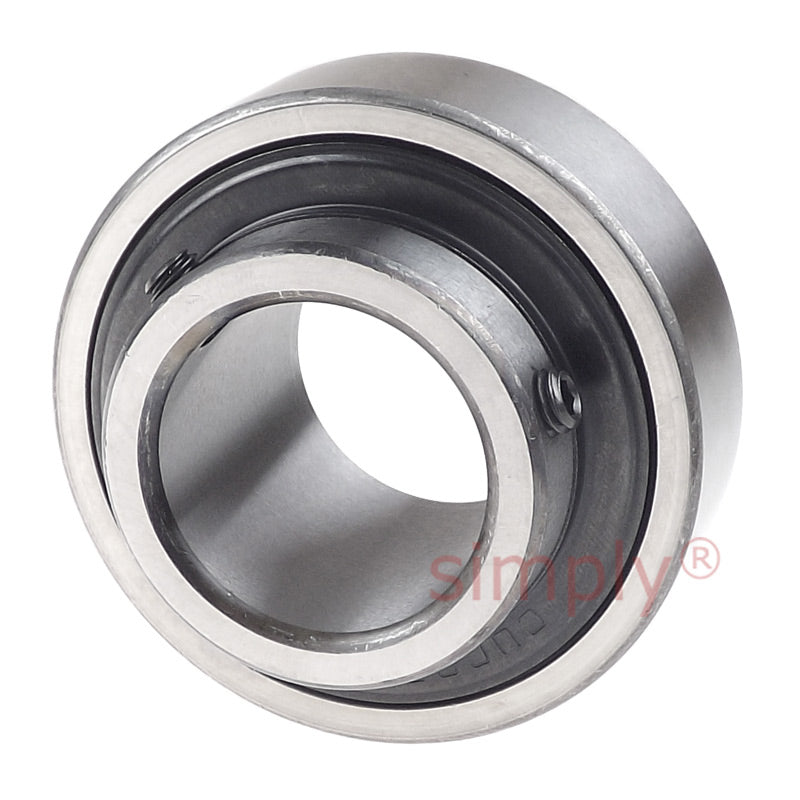

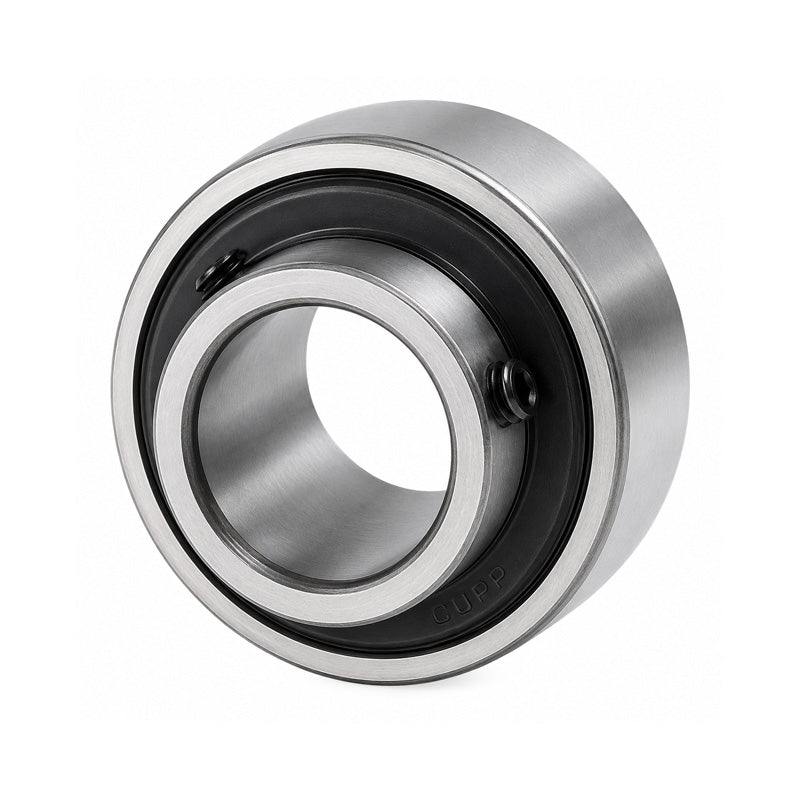

CUC207 Metric Cylindrical Bearing Insert with 35mm Bore 72mm Outside Dia
CUC207 Metric Cylindrical Bearing Insert with 35mm Bore 72mm Outside Dia
Regular price
€12,46
ex VAT
Regular price
Sale price
€12,46
ex VAT
Equivalent to: UR207 RB207
In stock
Price Break
3+
€9,49
4+
€8,95
9+
€8,85
19+
€8,74
49+
€8,63
99+
€8,53
499+
€7,99
999+
€7,89
1999+
€7,78
2999+
€7,67
4999+
€7,46
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR207 RB207
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| Bi | 42.9mm |
| Be | 20mm |
| N | 17.5mm |
| M | 25.4mm |
| G | 7mm |
| ds | M8x1, 5/16-24UNF |
| Dynamic Load | 25700 N |
| Static Load | 15300 N |
| Weight | 0.48 kg |
