SKU: CUC207-20

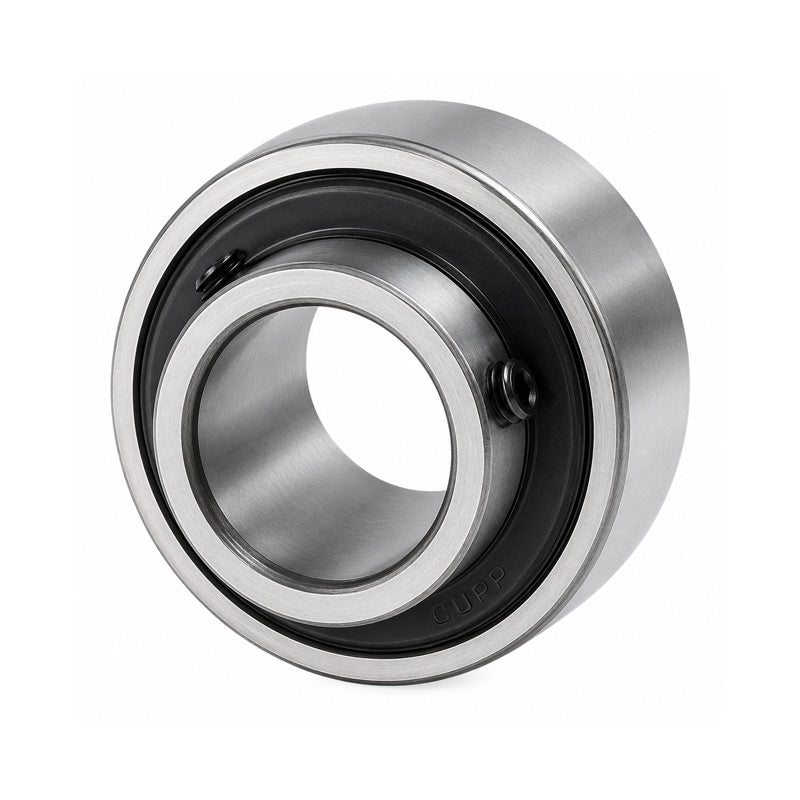

CUC207-20 Imperial Cylindrical Bearing Insert with 1-1/4 inch Bore 72mm Outside Dia - Allow 2-3 Days
CUC207-20 Imperial Cylindrical Bearing Insert with 1-1/4 inch Bore 72mm Outside Dia - Allow 2-3 Days
Regular price
€9,04
ex VAT
Regular price
Sale price
€9,04
ex VAT
Equivalent to: UR207-20 RB207-20
In stock
Price Break
3+
€7,66
4+
€7,35
9+
€7,20
19+
€6,97
49+
€6,81
99+
€6,42
499+
€5,42
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR207-20 RB207-20
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 72mm
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| D | 72mm |
| Bi | 42.9mm |
| Be | 20mm |
| N | 17.5mm |
| M | 25.4mm |
| G | 7mm |
| ds | M8x1, 5/16-24UNF |
| Dynamic Load | 25700 N |
| Static Load | 15300 N |
| Weight | 0.54 kg |
