SKU: CUC208-24

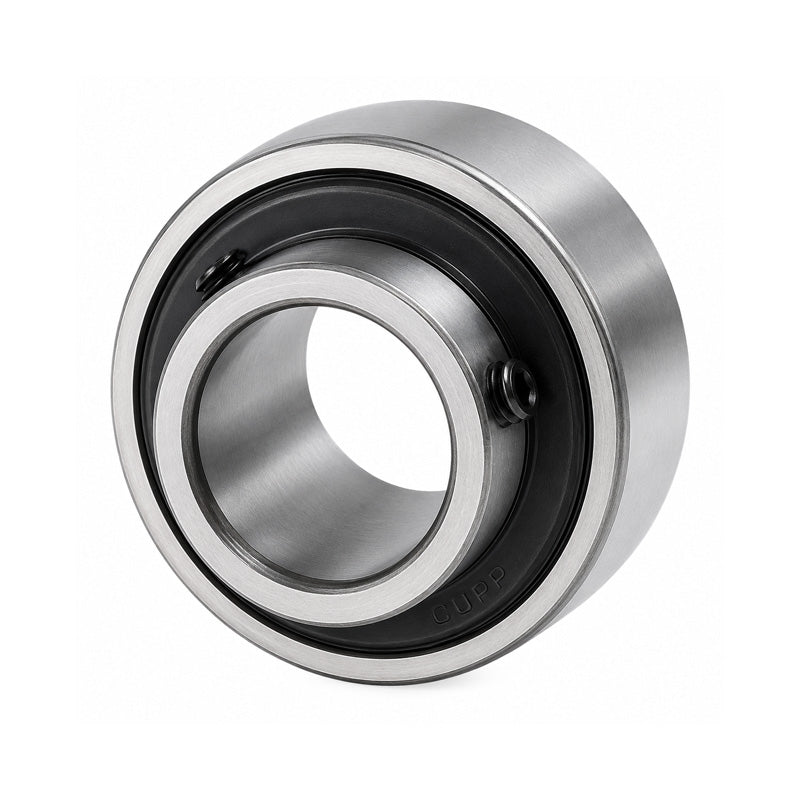

CUC208-24 Imperial Cylindrical Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia
CUC208-24 Imperial Cylindrical Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia
Regular price
€14,88
ex VAT
Regular price
Sale price
€14,88
ex VAT
Equivalent to: UR208-24 RB208-24
In stock
Price Break
3+
€11,33
4+
€10,69
9+
€10,57
19+
€10,44
49+
€10,31
99+
€10,18
499+
€9,55
999+
€9,42
1999+
€9,29
2999+
€9,17
4999+
€8,91
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR208-24 RB208-24
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 80mm
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| D | 80mm |
| Bi | 49.2mm |
| Be | 21mm |
| N | 19mm |
| M | 30.2mm |
| G | 8mm |
| ds | M8x1, 5/16-24UNF |
| Dynamic Load | 29500 N |
| Static Load | 18100 N |
| Weight | 0.68 kg |
