SKU: CUC211

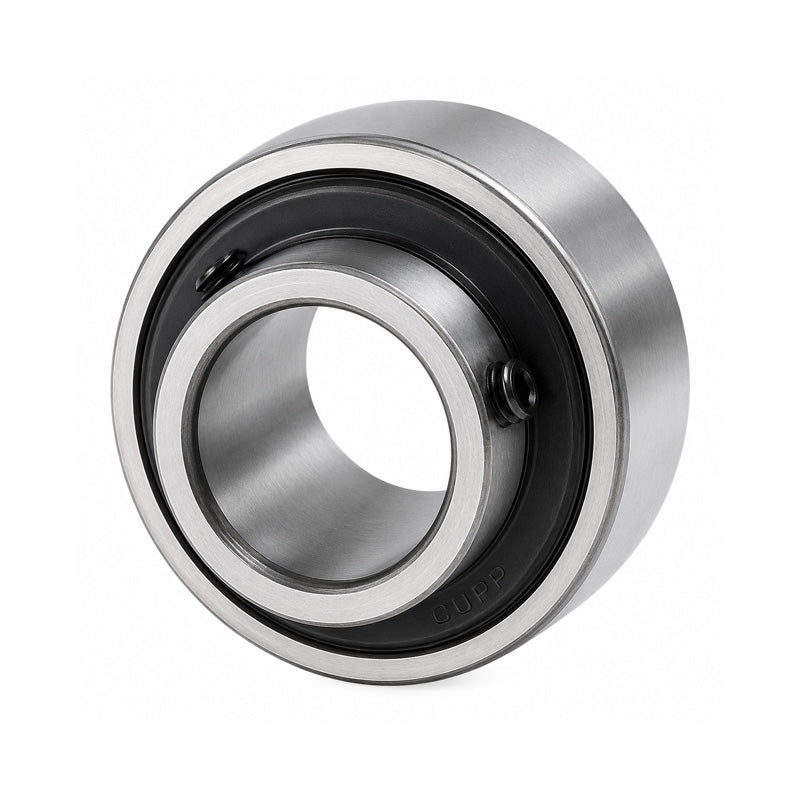

CUC211 Metric Cylindrical Bearing Insert with 55mm Bore 100mm Outside Dia
CUC211 Metric Cylindrical Bearing Insert with 55mm Bore 100mm Outside Dia
Regular price
€27,27
ex VAT
Regular price
Sale price
€27,27
ex VAT
Equivalent to: UR211 RB211
In stock
Price Break
3+
€20,77
4+
€19,60
9+
€19,37
19+
€19,14
49+
€18,90
99+
€18,67
499+
€17,50
999+
€17,27
1999+
€17,04
2999+
€16,80
4999+
€16,34
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR211 RB211
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
Technical
Technical
| d | 55mm |
|---|---|
| D | 100mm |
| Bi | 55.6mm |
| Be | 25mm |
| N | 22.2mm |
| M | 33.4mm |
| G | 10mm |
| ds | M10x1, 3/8-24UNF |
| Dynamic Load | 43500 N |
| Static Load | 29200 N |
| Weight | 1.11 kg |
