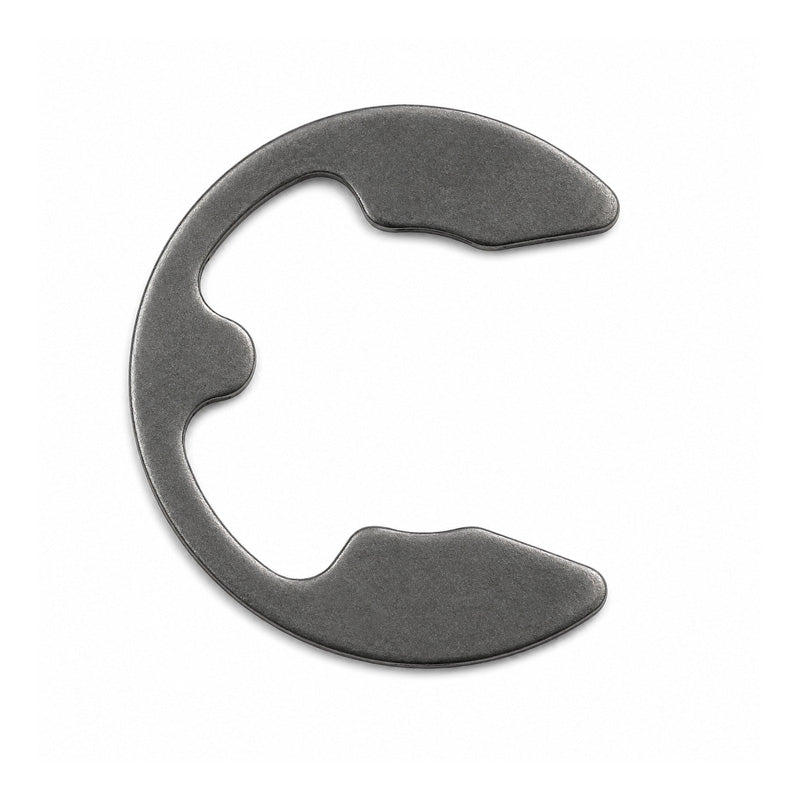

• Sprung Carbon Steel E-Clip for 1.5mm Groove Diameter
1 1

SKU: D1500-0015

Sprung Carbon Steel E-Clip for 1.5mm Groove Diameter

Sprung Carbon Steel E-Clip for 1.5mm Groove Diameter
€0,99 ex VAT
€0,99 ex VAT
Sale Sold out

Equivalent to: D1500-0015

In stock

Price Break
10+ €0,43
20+ €0,29
50+ €0,18
100+ €0,11
500+ €0,04
1000+ €0,03
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

E-Clips: The most common form of radial fitted circlips for shafts with grooves, provides a retaining shoulder on a relatively small shaft diameter. Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil.
Note: The groove size is critical with this type of circlip, the shaft diameter can vary slightly. Please see technical tab for more information. The size of clip stated denotes the diameter of the groove into which it fits.
Benefits: Cost effective replacement, durable, removable.

Equivalent: D1500-0015
Brand / Quality:
Simply E-Clips - Economy Quality
Material:
Sprung Carbon Steel
Shaft Size:
2mm
Thickness:
0.4mm
Groove Diameter:
1.5mm
Technical
--- Clip Dimensions
Shaft Size (d1) 2mm
Shaft Range 2mm to 2.5mm
Thickness (s) 0.4mm
Thickness Tolerance ±0.02mm
Max Outisde Diameter (d4) 3.9mm
Shoulder Length (n) 0.8mm
a 1.28mm
a Tolerance ±0.040mm
Weight 0.021kg
--- Speeds and Load Ratings
Max Fling Off Speed 42000rpm
--- Groove Requirements
Groove Diameter (d2) 1.5mm
Groove Diameter Tolerance +0mm / -0.06mm
Groove Width (m) 0.44mm
Groove Depth (g) 0.6mm
