SKU: E20-KLL-INA

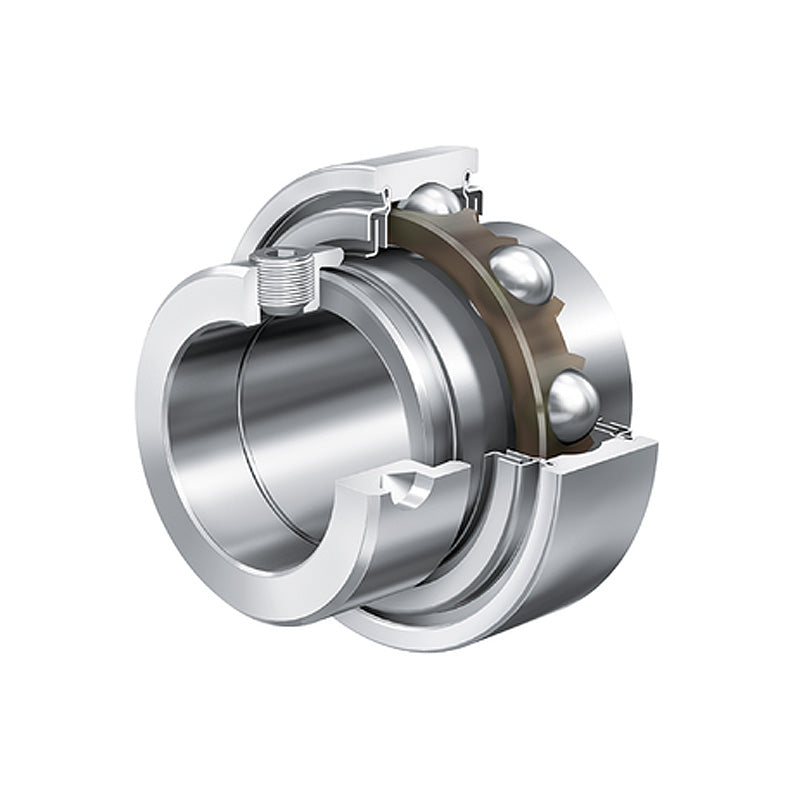

INA E20XLKLL Metric Parallel Outer Bearing Insert with L Seals and Eccentric Collar 20x47x43.7mm
INA E20XLKLL Metric Parallel Outer Bearing Insert with L Seals and Eccentric Collar 20x47x43.7mm
Regular price
€39,50
ex VAT
Regular price
Sale price
€39,50
ex VAT
In stock
Price Break
3+
€30,08
5+
€28,39
10+
€28,05
15+
€27,72
20+
€27,38
30+
€27,04
40+
€25,35
50+
€25,01
60+
€24,67
75+
€24,34
100+
€23,66
Description
Description
|
INA E..-KLL Series Inserts: Bearing insert with parallel outer race, L seals and eccentric collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -20 deg C to +120 deg C. Benefits: Corrotect® coated to protect against fretting corrosion. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 43.7mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| B1 | 43.7mm |
| B | 34.1mm |
| C | 14mm |
| C2 | 16.6mm |
| D1 | 37.4mm |
| d1 | 27.6mm |
| d3 max | 33mm |
| S | 17.1mm |
| W | 3mm |
| Dynamic load Cr | 12800 N |
| Static load C0r | 6600 N |
| Weight | 0.2 kg |
