SKU: ESEHE207-SNR

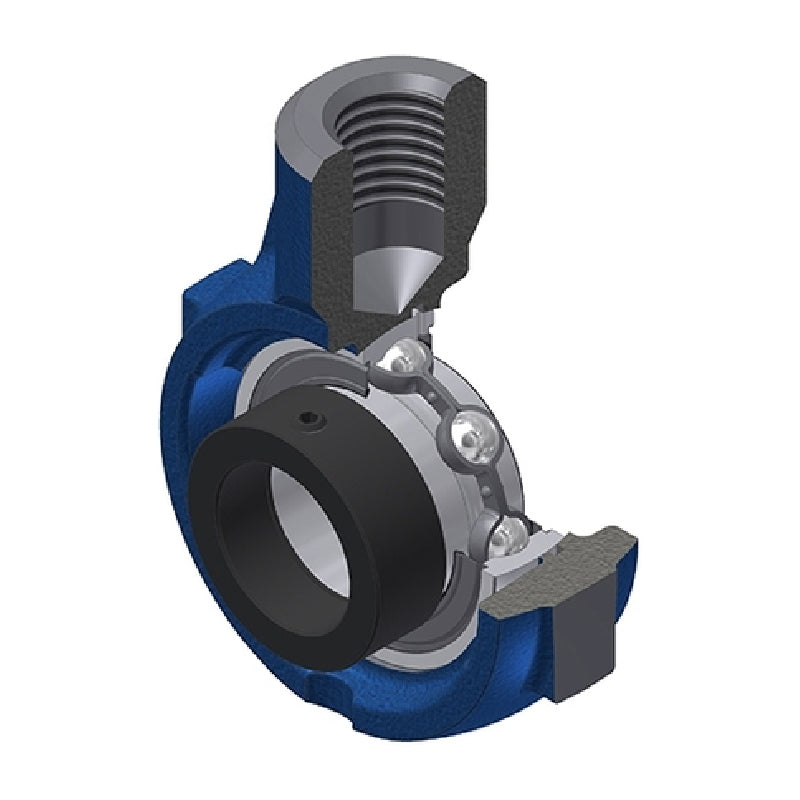

SNR ESEHE207 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
SNR ESEHE207 Metric Cast Iron Hanger Bearing Unit with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
Regular price
€46,62
ex VAT
Regular price
Sale price
€46,62
ex VAT
In stock
Price Break
3+
€39,49
4+
€37,90
9+
€37,10
19+
€35,90
49+
€35,10
99+
€33,11
499+
€27,92
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
ESEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and include a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 35mm
- Style:
- ESEHE
Technical
Technical

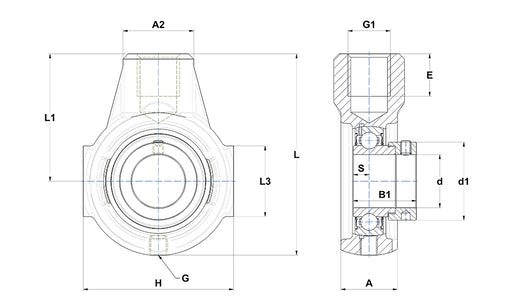

| --- | Dimensions |
|---|---|
| Shaft diameter d | 35mm |
| A | 32mm |
| A2 | 40mm |
| B1 | 38.9mm |
| d1 | 51.1mm |
| E | 24mm |
| H | 90mm |
| L | 122mm |
| L1 | 76mm |
| L3 | 40mm |
| S | 9.5mm |
| G | R1/8″ |
| G1 | M24 |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.2 kg |
