SKU: ESFLE204T20-SNR

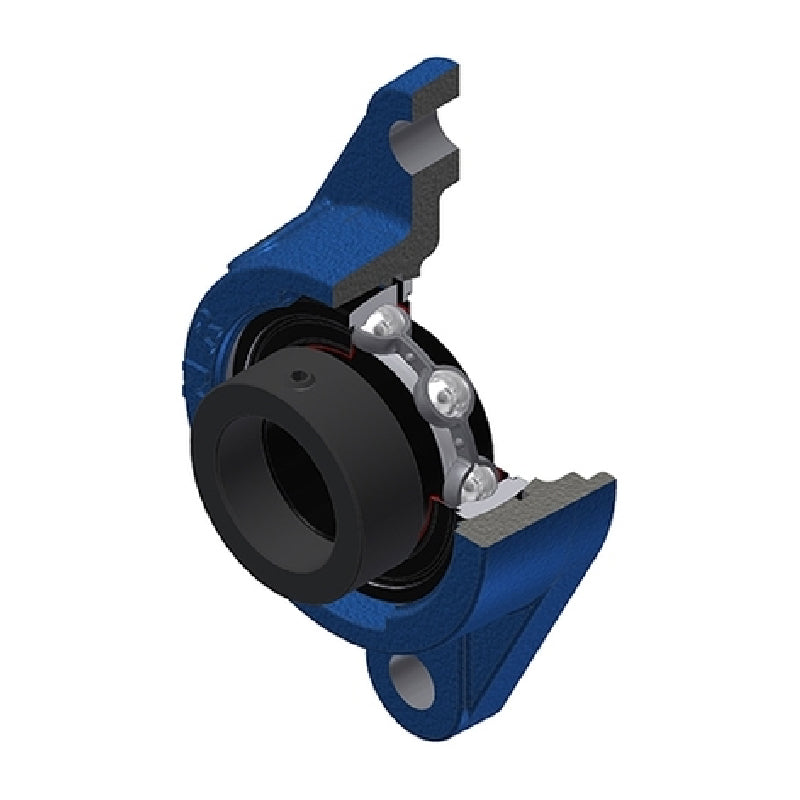

SNR ESFLE204T20 Metric Two Bolt Cast Iron Oval Housing with 20mm Bore Eccentric Collar Insert Wide Temperature Version - Allow 2-3 Days

SNR ESFLE204T20 Metric Two Bolt Cast Iron Oval Housing with 20mm Bore Eccentric Collar Insert Wide Temperature Version - Allow 2-3 Days
Regular price €31,06 ex VAT
Regular price Sale price €31,06 ex VAT
Sale Sold out

In stock

Price Break
3+ €26,31
4+ €25,25
9+ €24,72
19+ €23,92
49+ €23,39
99+ €22,06
499+ €18,61
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 20mm
A 30.3mm
A1 10mm
A2 42.4mm
B 21.4mm
B1 30.9mm
d1 32.4mm
e 19mm
H 112mm
J 90mm
L 61mm
N 11.5mm
S 7.5mm
G R1/8″
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.45 kg
