SKU: ESFLE208T20-SNR

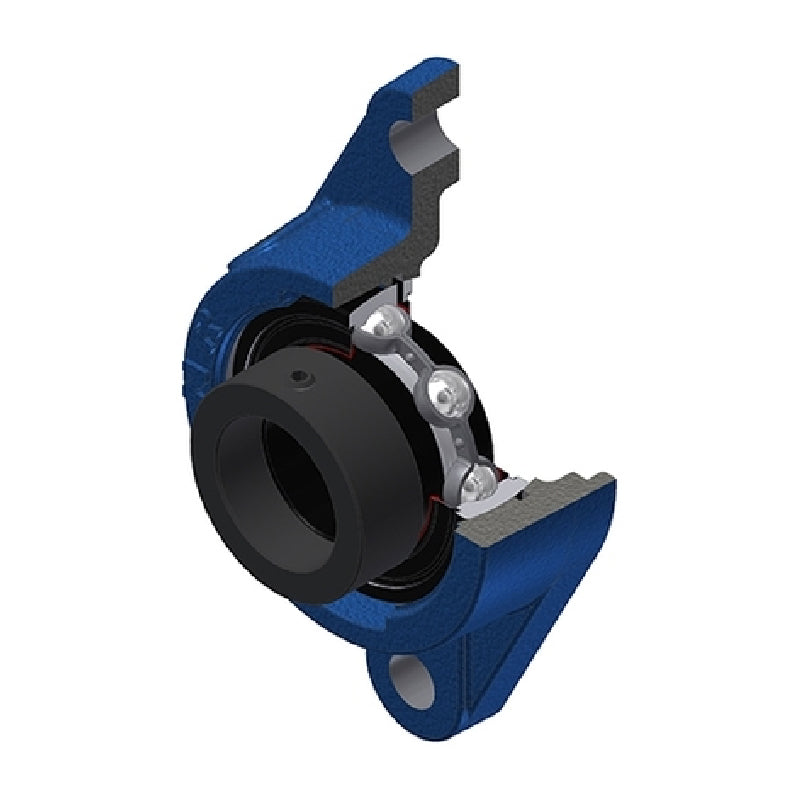

SNR ESFLE208T20 Metric Two Bolt Cast Iron Oval Housing with 40mm Bore Eccentric Collar Insert Wide Temperature Version - Allow 2-3 Days

SNR ESFLE208T20 Metric Two Bolt Cast Iron Oval Housing with 40mm Bore Eccentric Collar Insert Wide Temperature Version - Allow 2-3 Days
Regular price €116,56 ex VAT
Regular price Sale price €116,56 ex VAT
Sale Sold out

In stock

Price Break
3+ €98,74
4+ €94,75
9+ €92,76
19+ €89,77
49+ €87,77
99+ €82,78
499+ €69,82
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 40mm
A 37.5mm
A1 13mm
A2 56.7mm
B 30.2mm
B1 43.7mm
d1 58mm
e 24mm
H 172mm
J 143.5mm
L 105mm
N 14mm
S 11mm
G R1/8″
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.65 kg
