SKU: ESPE212N-SNR

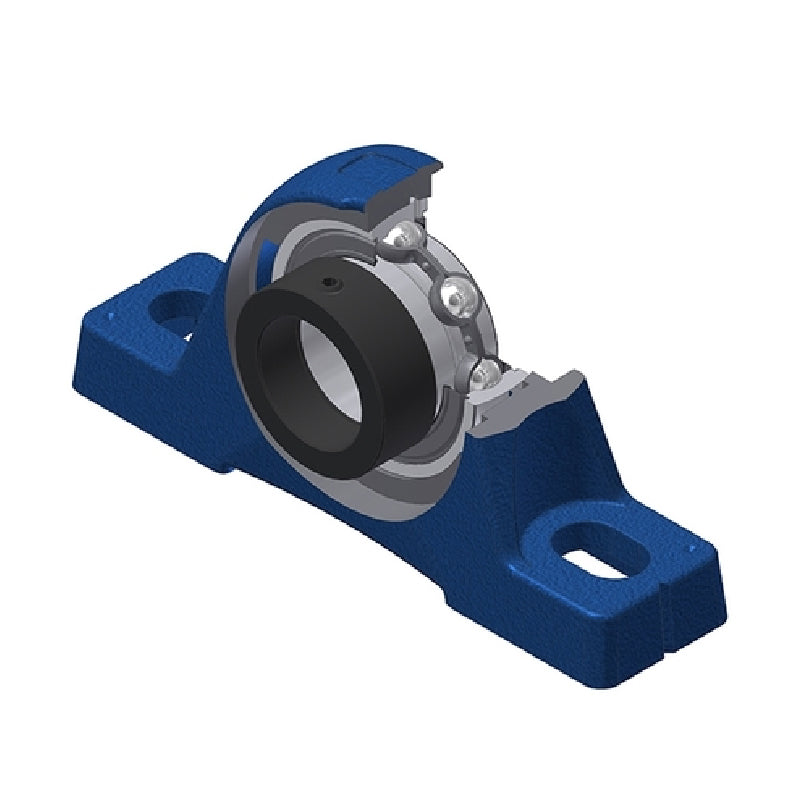

SNR ESPE212N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days

SNR ESPE212N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
Regular price €116,58 ex VAT
Regular price Sale price €116,58 ex VAT
Sale Sold out

In stock

Price Break
3+ €98,76
4+ €94,77
9+ €92,78
19+ €89,78
49+ €87,79
99+ €82,80
499+ €69,83
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 60mm
A 60mm
A1 42mm
B 33.4mm
d1 82mm
H 69.9mm
H1 25mm
H2 140mm
J 190mm
L 240mm
L1 71mm
N 18mm
N1 28mm
S 12mm
G R1/8"
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 4.4 kg
