SKU: EXC211-SNR

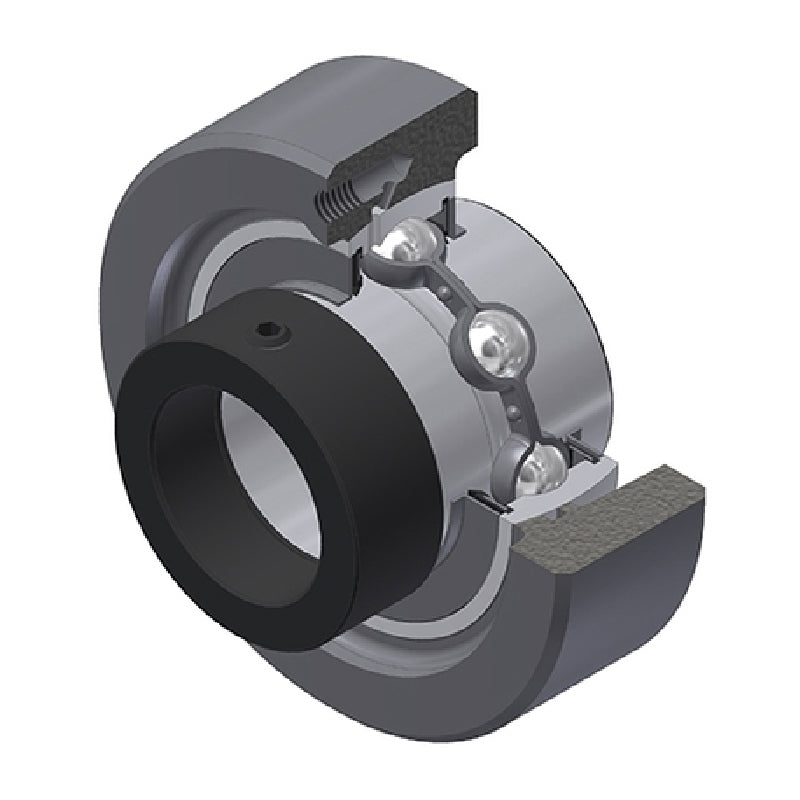

SNR EXC211 Metric Cast Iron Cartridge Unit with 55mm Bore Insert 35mm Outside Dia - Allow 2-3 Days
SNR EXC211 Metric Cast Iron Cartridge Unit with 55mm Bore Insert 35mm Outside Dia - Allow 2-3 Days
Regular price
€103,60
ex VAT
Regular price
Sale price
€103,60
ex VAT
In stock
Price Break
3+
€87,76
4+
€84,22
9+
€82,44
19+
€79,79
49+
€78,01
99+
€73,58
499+
€62,06
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
EXC200 Series Cast Iron Cartridge Unit: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- EXC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 35mm |
| A3 | 2mm |
| B1 | 71.3mm |
| d1 | 74.5mm |
| H | 125mm |
| S | 27.7mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 2.49 kg |
