SKU: EXC311-SNR

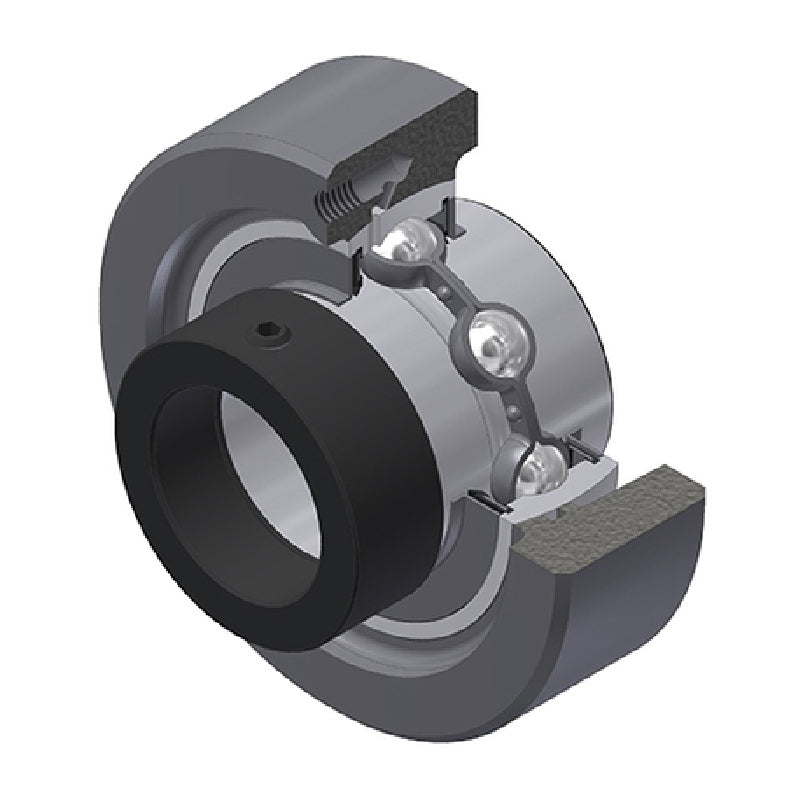

SNR EXC311 Metric Cast Iron Cartridge Unit with 55mm Bore Insert 44mm Outside Dia - Allow 2-3 Days
SNR EXC311 Metric Cast Iron Cartridge Unit with 55mm Bore Insert 44mm Outside Dia - Allow 2-3 Days
Regular price
€207,12
ex VAT
Regular price
Sale price
€207,12
ex VAT
In stock
Price Break
3+
€175,47
4+
€168,38
9+
€164,83
19+
€159,52
49+
€155,97
99+
€147,11
499+
€124,07
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
EXC300 Series Cast Iron Cartridge Unit: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- EXC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 44mm |
| A3 | 2.5mm |
| B1 | 73mm |
| d1 | 83mm |
| H | 150mm |
| S | 27.8mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 71.5 kN |
| Static load C0 | 44.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 4.3 kg |
