SKU: EXFA211-SNR

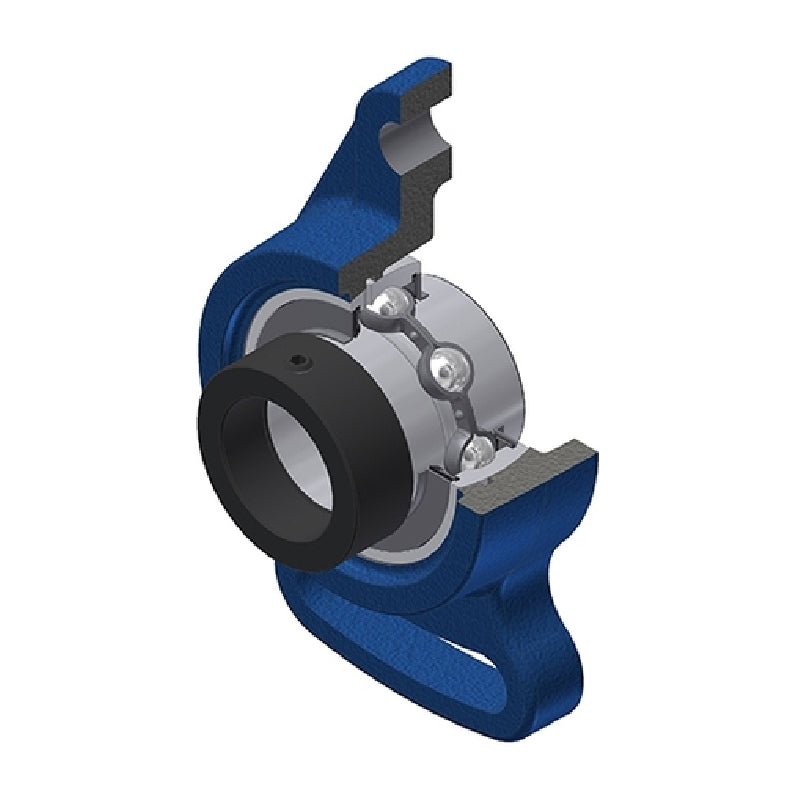

SNR EXFA211 Metric Cast Iron Adjustable Flange Unit with Eccentric Collar Insert 55mm Bore - Allow 2-3 Days

SNR EXFA211 Metric Cast Iron Adjustable Flange Unit with Eccentric Collar Insert 55mm Bore - Allow 2-3 Days
Regular price €103,60 ex VAT
Regular price Sale price €103,60 ex VAT
Sale Sold out

In stock

Price Break
3+ €87,76
4+ €84,22
9+ €82,44
19+ €79,79
49+ €78,01
99+ €73,58
499+ €62,06
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 55mm
A 43mm
A1 20mm
A2 68.6mm
B 55.4mm
B1 71.3mm
d1 74.5mm
e 25mm
H 219mm
J 184mm
J1 86mm
L 130mm
L1 104mm
N 16mm
S 27.7mm
G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 3.39 kg
