SKU: EXFA212-SNR

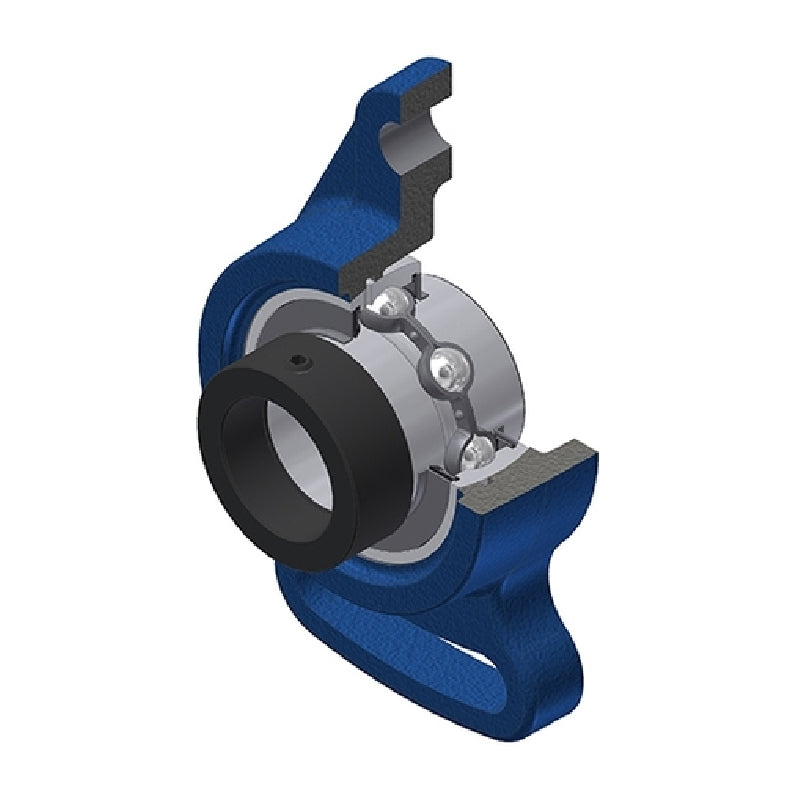

SNR EXFA212 Metric Cast Iron Adjustable Flange Unit with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days

SNR EXFA212 Metric Cast Iron Adjustable Flange Unit with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days
Regular price €129,46 ex VAT
Regular price Sale price €129,46 ex VAT
Sale Sold out

In stock

Price Break
3+ €109,67
4+ €105,24
9+ €103,03
19+ €99,70
49+ €97,49
99+ €91,95
499+ €77,55
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 60mm
A 48mm
A1 20mm
A2 75.8mm
B 61.8mm
B1 77.7mm
d1 82mm
e 29mm
H 250mm
J 202mm
J1 92mm
L 140mm
L1 118mm
N 23mm
S 30.9mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 4.57 kg
