SKU: EXFC207-SNR

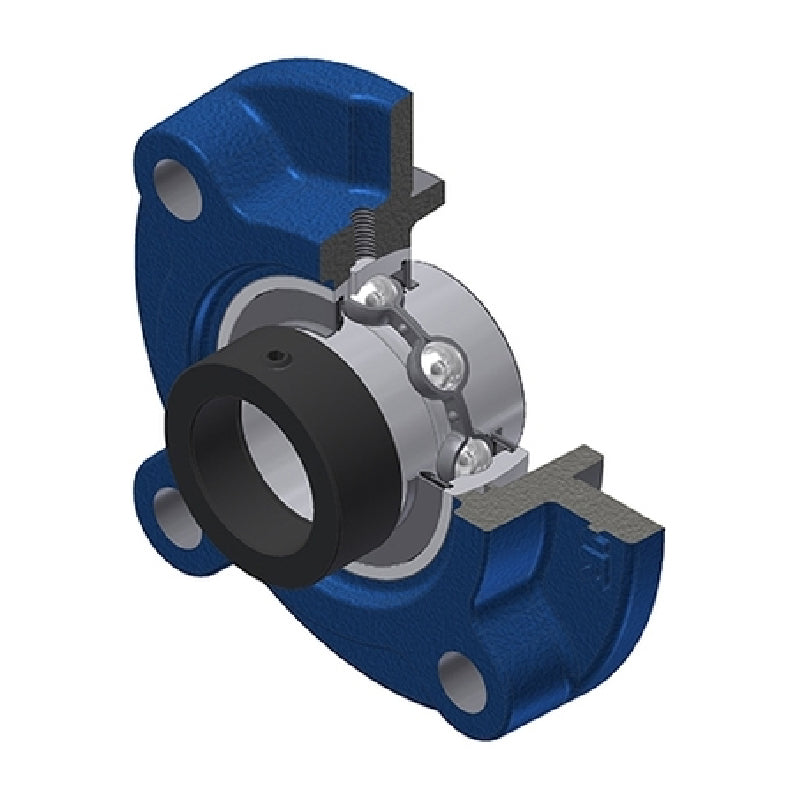

SNR EXFC207 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXFC207 Metric Four Bolt Cast Iron Round Flanged Housing with 35mm Eccentric Collar Insert - Allow 2-3 Days
Regular price €64,68 ex VAT
Regular price Sale price €64,68 ex VAT
Sale Sold out

In stock

Price Break
3+ €54,80
4+ €52,58
9+ €51,48
19+ €49,82
49+ €48,71
99+ €45,94
499+ €38,75
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 35mm
A 34mm
A1 9mm
A2 43.3mm
A4 26mm
B 37.6mm
B1 51.1mm
d1 51.1mm
e 11mm
H3 90mm
J 110mm
L 135mm
N 14mm
S 18.8mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.79 kg
