SKU: EXP209N-SNR

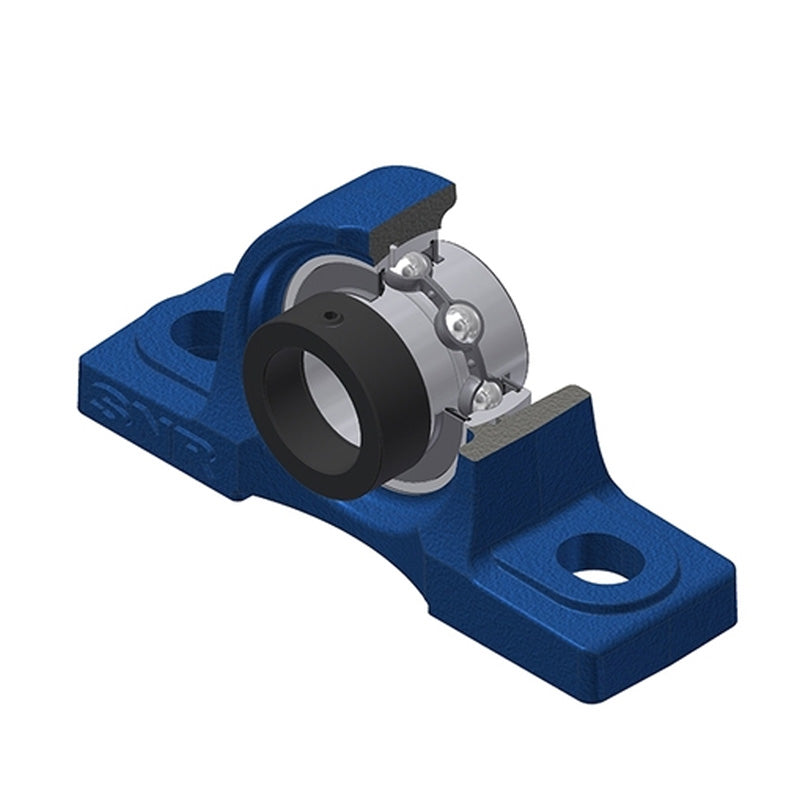

SNR EXP209N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXP209N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days
Regular price €77,71 ex VAT
Regular price Sale price €77,71 ex VAT
Sale Sold out

In stock

Price Break
3+ €65,84
4+ €63,18
9+ €61,85
19+ €59,85
49+ €58,52
99+ €55,20
499+ €46,55
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 45mm
A 54mm
A1 37mm
B 42.8mm
d1 62mm
H 54mm
H1 20mm
H2 108mm
J 146mm
L 190mm
L1 60mm
N 17mm
N1 23mm
S 21.4mm
Dz mm
Z mm
G M6x1
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 2.47 kg
