SKU: EXPE215-SNR

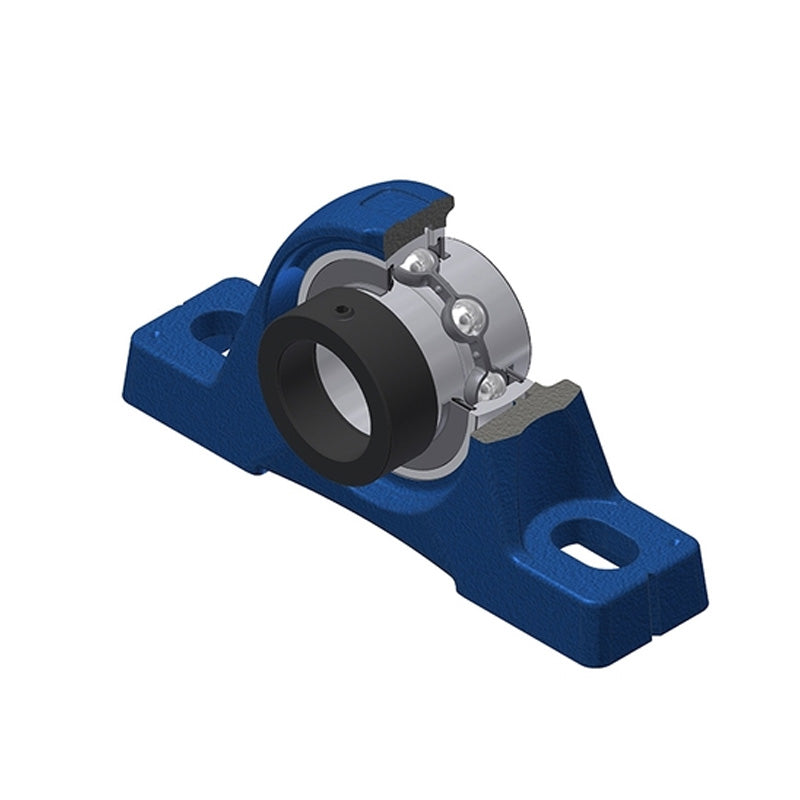

SNR EXPE215 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 75mm Eccentric Collar Insert - Allow 2-3 Days
SNR EXPE215 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 75mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
€233,15
ex VAT
Regular price
Sale price
€233,15
ex VAT
In stock
Price Break
3+
€197,51
4+
€189,53
9+
€185,54
19+
€179,56
49+
€175,57
99+
€165,59
499+
€139,66
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
EXPE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 75mm
- Style:
- EXPE
- Bolt Hole Centres:
- 210mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 75mm |
| A | 66mm |
| A1 | 48mm |
| B | 74.6mm |
| d1 | 102mm |
| H | 82.5mm |
| H1 | 27.5mm |
| H2 | 164mm |
| J | 210mm |
| L | 265mm |
| L1 | 78mm |
| N | 22mm |
| N1 | 30mm |
| S | 37.3mm |
| G | R1/8 |
| --- | Load rating |
| Dynamic load C | 66 kN |
| Static load C0 | 49.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 7.54 kg |
