SKU: EXPG208-SNR

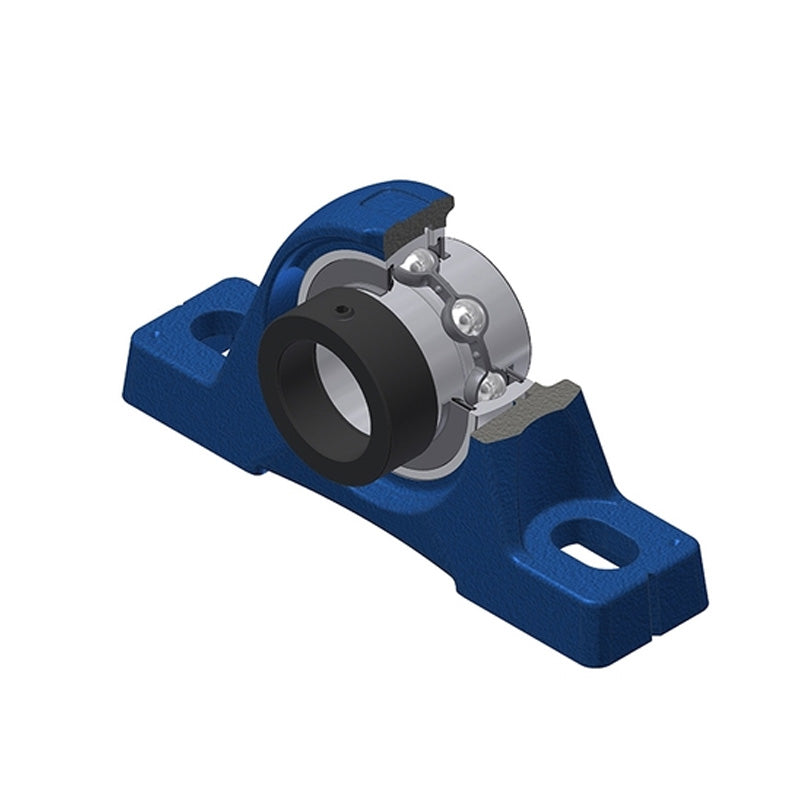

SNR EXPG208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
SNR EXPG208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 40mm Bore - Allow 2-3 Days
Regular price
€64,73
ex VAT
Regular price
Sale price
€64,73
ex VAT
In stock
Price Break
3+
€54,84
4+
€52,62
9+
€51,51
19+
€49,85
49+
€48,74
99+
€45,97
499+
€38,77
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
EXPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- EXPG
- Bolt Hole Centres:
- 78mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| A | 54mm |
| A1 | 30mm |
| B | 42.8mm |
| d1 | 58mm |
| E | 22mm |
| H | 49.2mm |
| H1 | 20mm |
| H2 | 98mm |
| J | 78mm |
| L | 110mm |
| L1 | 35mm |
| N | M12 |
| S | 21.4mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.98 kg |
