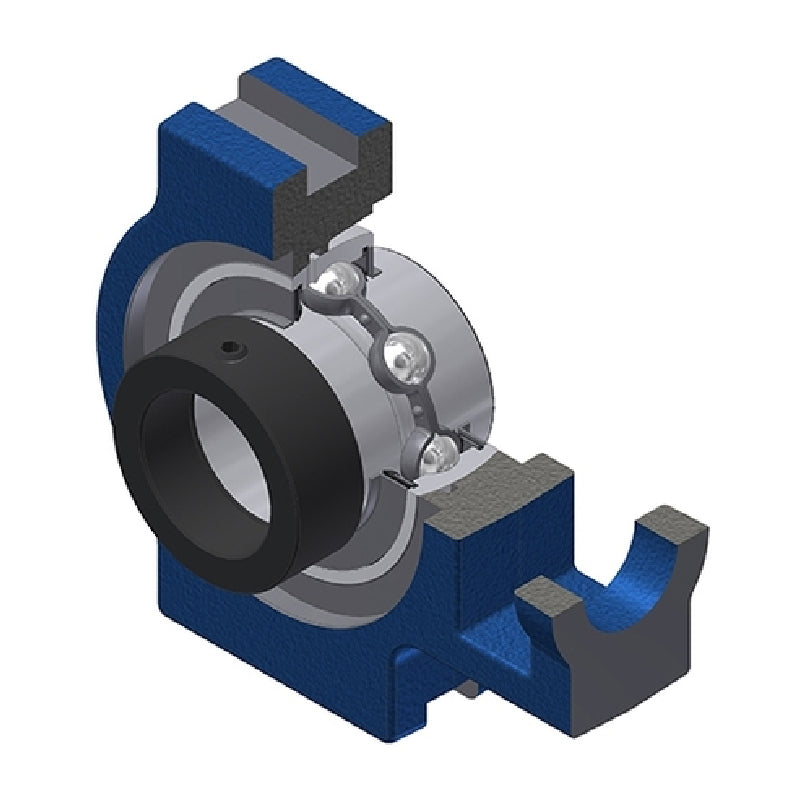

SNR EXT213N Metric Cast Iron Take Up Unit with Eccentric Collar Insert 65mm Bore - Allow 2-3 Days
SNR EXT213N Metric Cast Iron Take Up Unit with Eccentric Collar Insert 65mm Bore - Allow 2-3 Days
Regular price
€207,13
ex VAT
Regular price
Sale price
€207,13
ex VAT
In stock
Price Break
3+
€175,48
4+
€168,39
9+
€164,84
19+
€159,53
49+
€155,98
99+
€147,12
499+
€124,08
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
EXT200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 65mm
- Style:
- EXT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 65mm |
| A | 70mm |
| A1 | 26mm |
| A2 | 44mm |
| B1 | 85.7mm |
| d1 | 86mm |
| H | 167mm |
| H1 | 151mm |
| H2 | 111mm |
| L | 224mm |
| L1 | 137mm |
| L2 | 21mm |
| L3 | 121mm |
| N | 41mm |
| N1 | 32mm |
| N2 | 70mm |
| S | 34.1mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 57.2 kN |
| Static load C0 | 40 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 7.21 kg |
