SKU: F10-18-MB

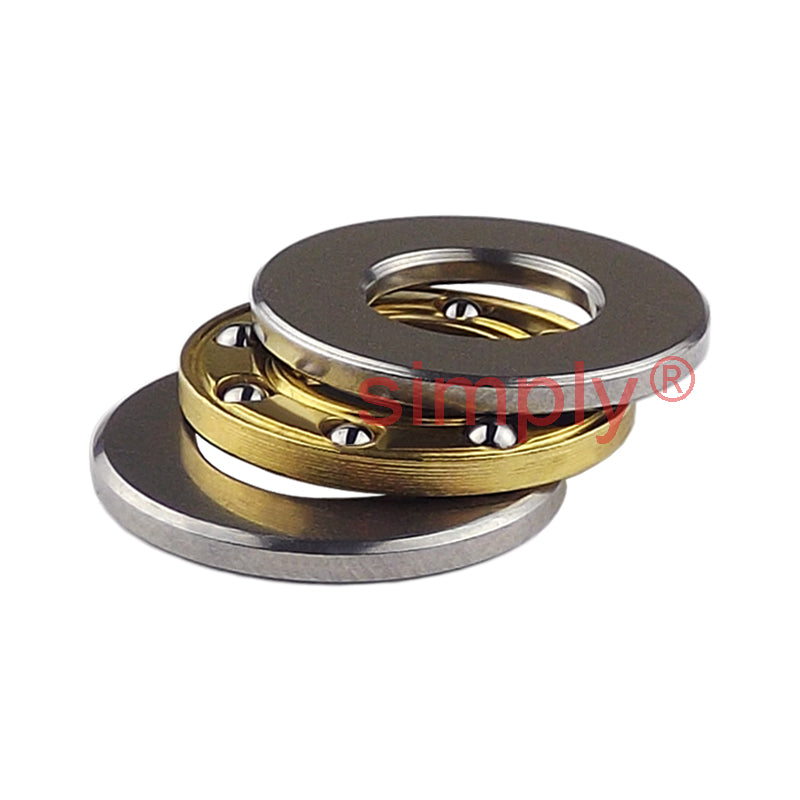

Major Brand F10-18 Single Thrust Ball Bearing 10x18x5.5mm
Major Brand F10-18 Single Thrust Ball Bearing 10x18x5.5mm
Regular price
€8,00
ex VAT
Regular price
Sale price
€8,00
ex VAT
In stock
Price Break
10+
€7,12
19+
€6,72
29+
€6,64
39+
€6,56
49+
€6,48
74+
€6,40
99+
€6,00
199+
€5,92
249+
€5,84
499+
€5,76
999+
€5,60
Couldn't load pickup availability
Description
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and a housing washer and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 18mm
- Width:
- 5.5mm
Technical
Technical
| d | 10mm |
|---|---|
| D | 18mm |
| H | 5.5mm |
| Dynamic load C | 0.78 kN |
| Static load Co | 0.7 kN |
| Limiting speed | 14000 rpm |
| Weight | 0.006 kg |
| r1r2 min | 0.3mm |
