SKU: F180F-MB
Major Brand F180F-MB Drive Coupling Inner Tapered Locking Bush Type Max Bush Bore 125mm / 5 inch
Major Brand F180F-MB Drive Coupling Inner Tapered Locking Bush Type Max Bush Bore 125mm / 5 inch
Regular price
€585,02
ex VAT
Regular price
Sale price
€585,02
ex VAT
Equivalent to: F180F-4535
In stock
Price Break
10+
€445,55
19+
€420,52
29+
€415,51
39+
€410,51
49+
€405,50
74+
€400,49
99+
€375,46
199+
€370,46
249+
€365,45
499+
€360,44
999+
€350,43
Description
Description
Branded Drive Coupling Inner Tapered Locking Bush Type: This type of coupling can accommodate simultaneous maximum misalignment in all planes without imposing undue loads on adjacent bearings.

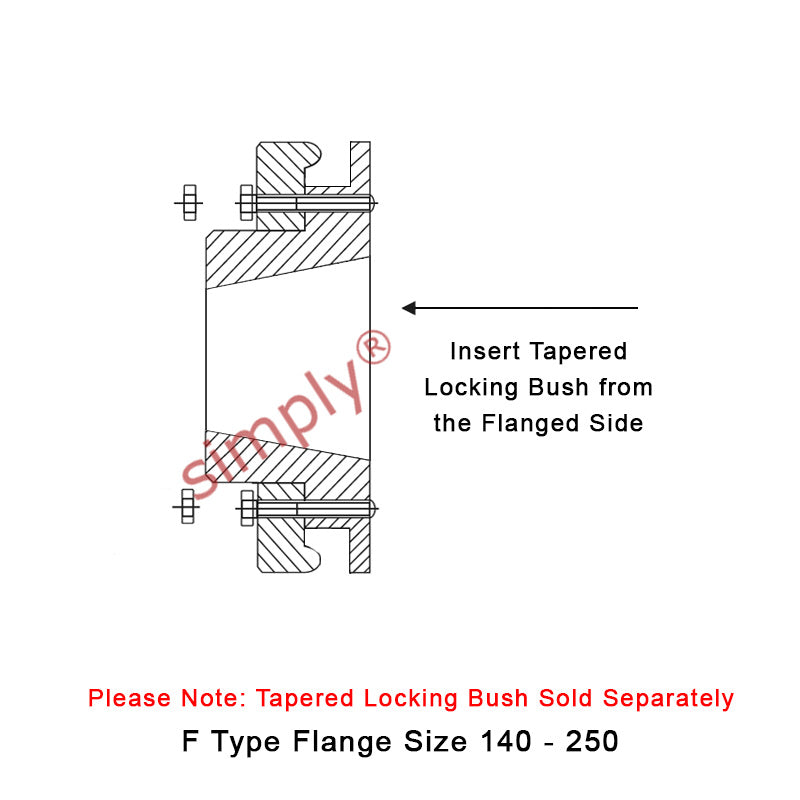

This coupling is the F type where the larger diameter of the taper bore is on the same side to the tyre clamping flange.
This is a half coupling. You require 2 x flanges and 1 x tyre to create a full coupling. Do you need a Fire Resistant Antistatic (F.R.A.S) rubber tyre. See links below.
Equivalent: F180F-4535
- Brand / Quality:
- Major Brand - High Quality
- Max Bore:
- 4535mm or 125 inch
Technical
Technical
| F Type - Bush | 4535 <a href="advanced_search_result.php?keywords=taper+lock+bush+4535">[Click Here]</a> |
|---|---|
| F Type - Max Bore | 125mm |
| F Type - Max Bore | 5 inch |
| F Type - Flange A | 470mm |
| F Type - Flange B | 205mm |
| F Type - Flange C | 398mm |
| F Type - Flange E | 23mm |
| F Type - Flange G | 89mm |
| F Type - Flange F | 112mm |
| F Type - Flange D | 89mm |
| F Type - Flange Weight | 46.6kg |
| F Type - Inertia | 0.847kgm2 |
| F Type - Flange Face Spacing | 46mm |
| F Type - Gap Between Tyre Ends | 6mm |
| F Type - Nominal Torque | 6270 Nm |
| F Type - Max Speed | 1500 rev/min |
| F Type - Max Par Mis | 4.8mm |
| F Type - Max End Float | 6mm |
| F Type - Screw Size | M16 |
| F Type - Tigtening Torque | 105 Nm |
| Max Power at 100 rpm | 65.7 kW |
| Max Power at 200 rpm | 131 kW |
| Max Power at 300 rpm | 197 kW |
| Max Power at 400 rpm | 263 kW |
| Max Power at 500 rpm | 328 kW |
| Max Power at 600 rpm | 394 kW |
| Max Power at 700 rpm | 460 kW |
| Max Power at 720 rpm | 473 kW |
| Max Power at 800 rpm | 525 kW |
| Max Power at 900 rpm | 591 kW |
| Max Power at 960 rpm | 630 kW |
| Max Power at 1000 rpm | 657 kW |
| Max Power at 1200 rpm | 788 kW |
| Max Power at 1400 rpm | 919 kW |
| Max Power at 1440 rpm | 945 kW |
| Maximum Speed | 1500 rev/min |
| Nominal Torque | 6270 Nm TKN |
| Maximum Torque | 16455 Nm TK MAX |
| Torsional Stiffness | 1371 Nm/° |
| Max. Parallel Misalignment | 4.8mm |
| Maximum End Float | 6mm ± |
| Approximate Mass | 7.7kg |
| Alternating Torque | 2742 ± Nm @ 10Hz TKW |
| Resonance Factor V B | 7 |
| Damping Coefficient Ø | 0.9 |
