SKU: FB-03-MB

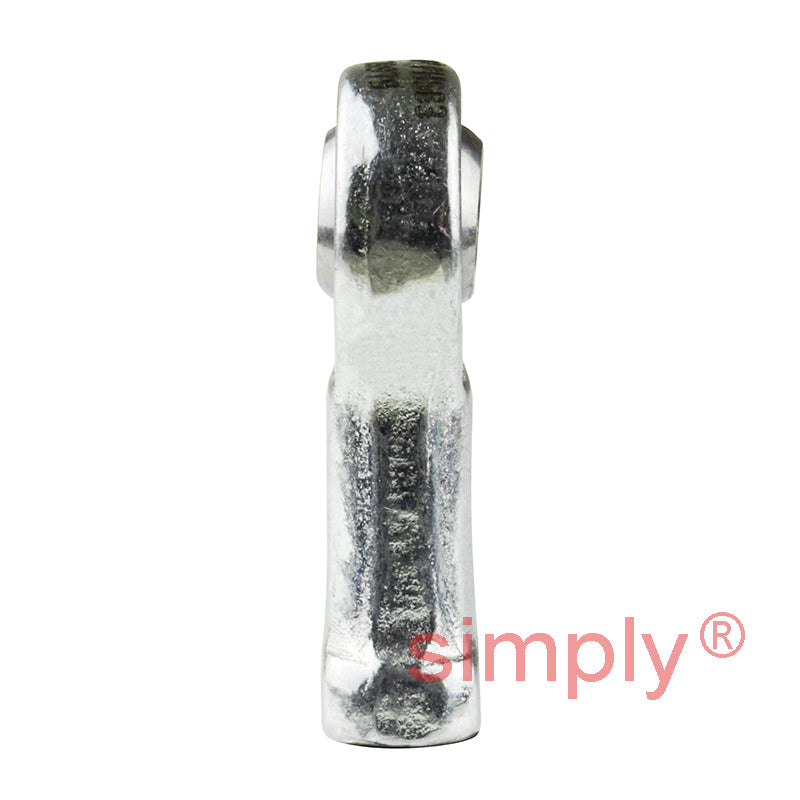

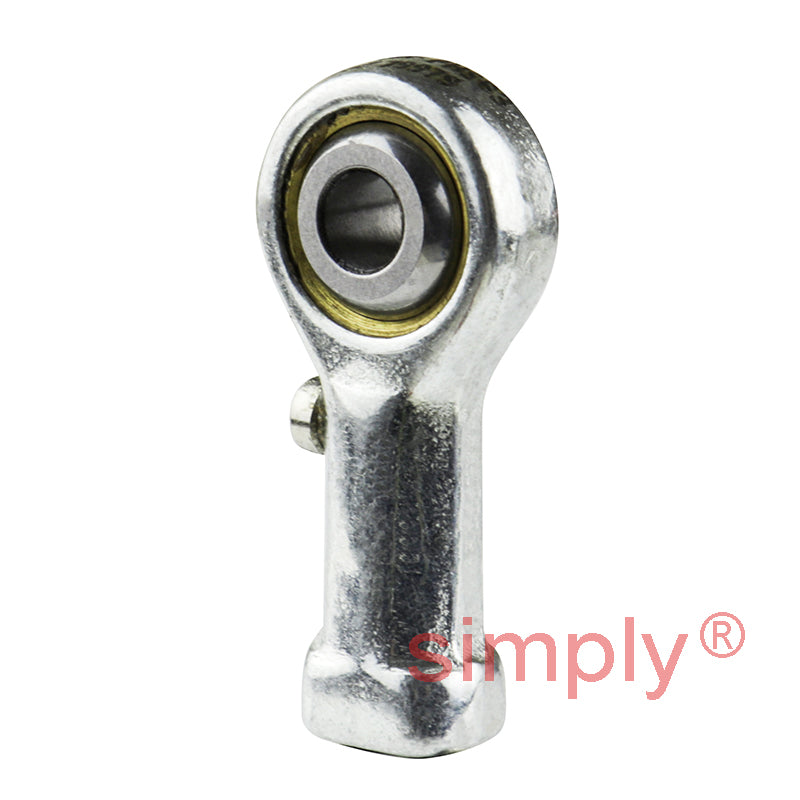

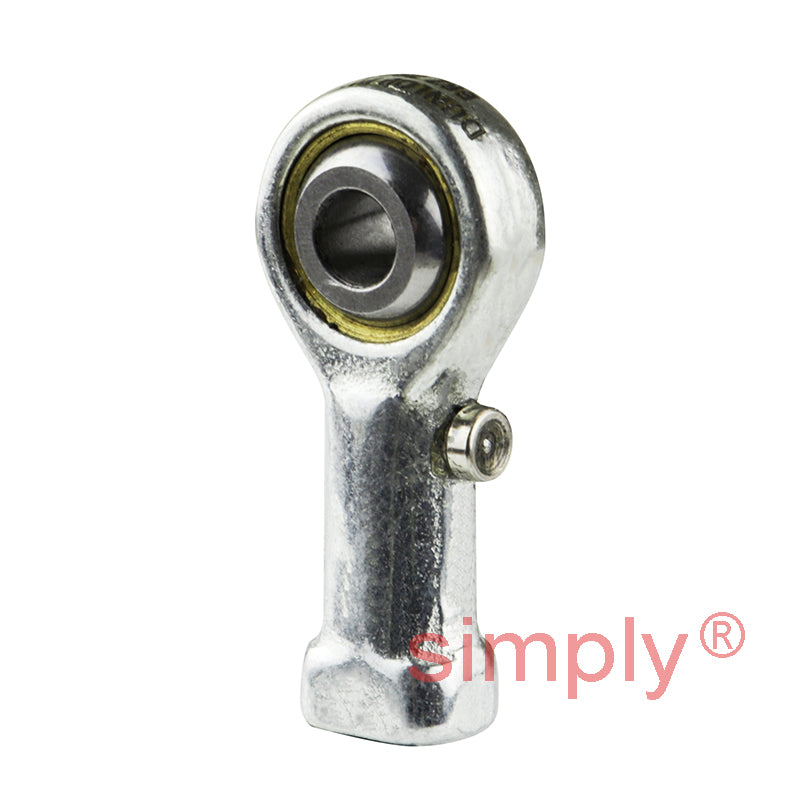

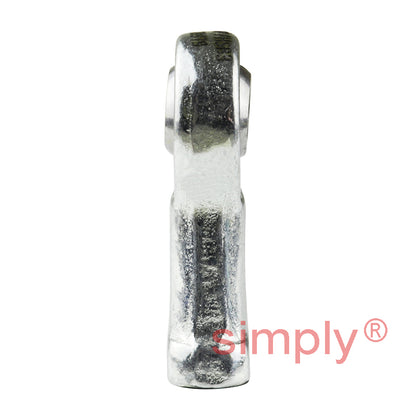

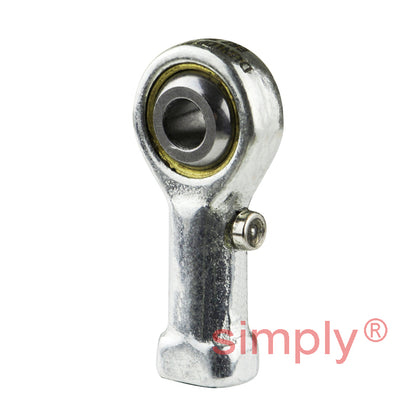

Branded FB-03 Right Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 3/16 UNF Thread - Allow 7-10 Days
Branded FB-03 Right Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 3/16 UNF Thread - Allow 7-10 Days
Regular price
€10,84
ex VAT
Regular price
Sale price
€10,84
ex VAT
Allow 7-10 Days
In stock
Price Break
10+
€9,65
19+
€9,11
29+
€9,00
39+
€8,89
49+
€8,78
74+
€8,67
99+
€8,13
199+
€8,02
249+
€7,91
499+
€7,80
999+
€7,59
Couldn't load pickup availability
Description
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- 3/16 UNF
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Liner Type:
- Bronze Lined
Technical
Technical
| Bore size | 3/16 inch |
|---|---|
| Thread | 3/16 UNF |
| W | 0.312 inch |
| H | 0.25 inch |
| D | 0.625 inch |
| L1 | 1.062 inch |
| L2 | 0.562 inch |
| O | 0.306 inch |
| AF | 0.312 inch |
| Static load | 6360 N |
