SKU: FB-03S-DUN

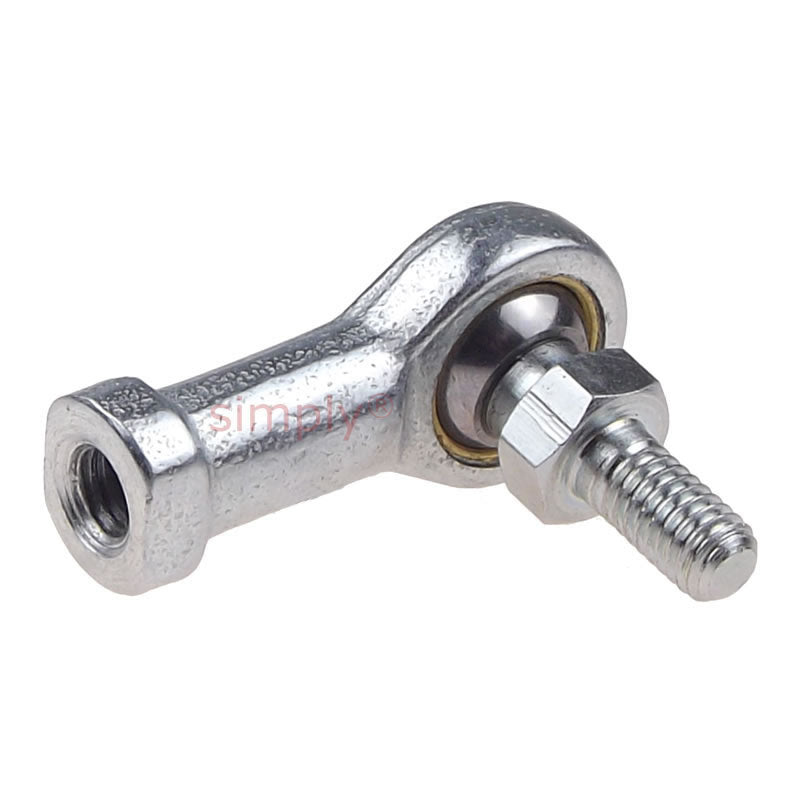

Dunlop FB-03S Right Hand Imperial Steel / Bronze Lined Maintenance Required Studded Female Rod End 3/16 UNF Thread - Allow 2-3 Days
Dunlop FB-03S Right Hand Imperial Steel / Bronze Lined Maintenance Required Studded Female Rod End 3/16 UNF Thread - Allow 2-3 Days
Regular price
€13,24
ex VAT
Regular price
Sale price
€13,24
ex VAT
In stock
Price Break
5+
€13,11
10+
€12,58
20+
€12,31
50+
€11,92
100+
€11,65
500+
€10,99
1000+
€9,27
Couldn't load pickup availability
Description
Description
|
FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear). Benefits: Low friction, extended wear life |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- 3/16 UNF
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Liner Type:
- Bronze Lined
Technical
Technical
| Stud size | 3/16 |
|---|---|
| Thread | 3/16 UNF |
| A | 0.5 inch |
| B | 0.516 inch |
| C | 0.437 inch |
| K | 0.312 inch |
| Static load | 1200 N |
