SKU: FB-M08S-DUN

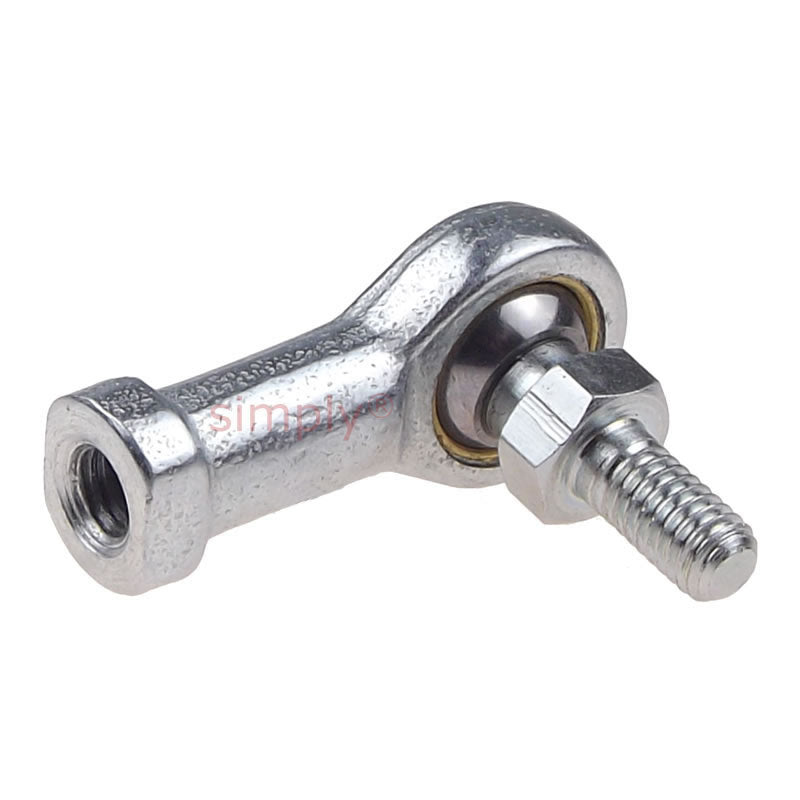

Dunlop FB-M08S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M8x1.25 Thread
Dunlop FB-M08S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M8x1.25 Thread
Regular price
€16,70
ex VAT
Regular price
Sale price
€16,70
ex VAT
Equivalent to: PHS8+STUD
In stock
Price Break
10+
€14,86
19+
€14,03
29+
€13,86
39+
€13,69
49+
€13,53
74+
€13,36
99+
€12,53
199+
€12,36
249+
€12,19
499+
€12,02
999+
€11,69
Couldn't load pickup availability
Description
Description
|
FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear). Benefits: Low friction, extended wear life |
Equivalent: PHS8+STUD
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- M8x1.25
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical
| Stud size | M8 |
|---|---|
| Thread | M8x1.25 |
| A | 16mm |
| B | 16mm |
| C | 14mm |
| K | 13mm |
| Static load | 3190 N |
