SKU: FB-M14S-DUN

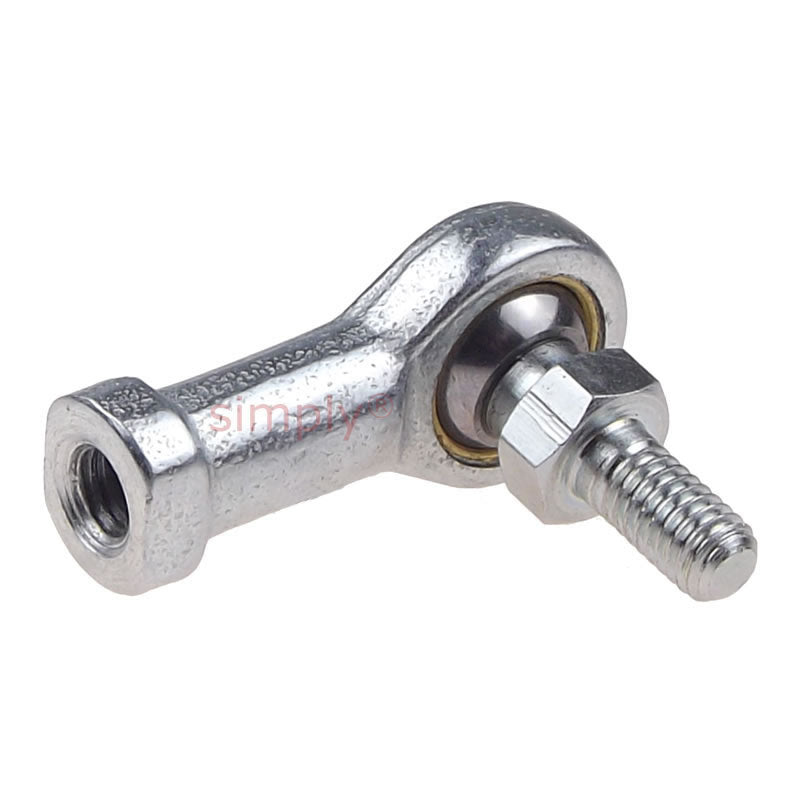

Dunlop FB-M14S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M14x2 Thread - Allow 7-10 Days
Dunlop FB-M14S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M14x2 Thread - Allow 7-10 Days
Regular price
€27,90
ex VAT
Regular price
Sale price
€27,90
ex VAT
Equivalent to: PHS14+STUD
In stock
Price Break
10+
€24,83
19+
€23,44
29+
€23,16
39+
€22,88
49+
€22,60
74+
€22,32
99+
€20,93
199+
€20,65
249+
€20,37
499+
€20,09
999+
€19,53
Couldn't load pickup availability
Description
Description
|
FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear). Benefits: Low friction, extended wear life |
Equivalent: PHS14+STUD
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- M14x2
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical
| Stud size | M14 |
|---|---|
| Thread | M14x2 |
| A | 28mm |
| B | 28mm |
| C | 25mm |
| K | 22mm |
| Static load | 7200 N |
