SKU: FB-M16CG-MB

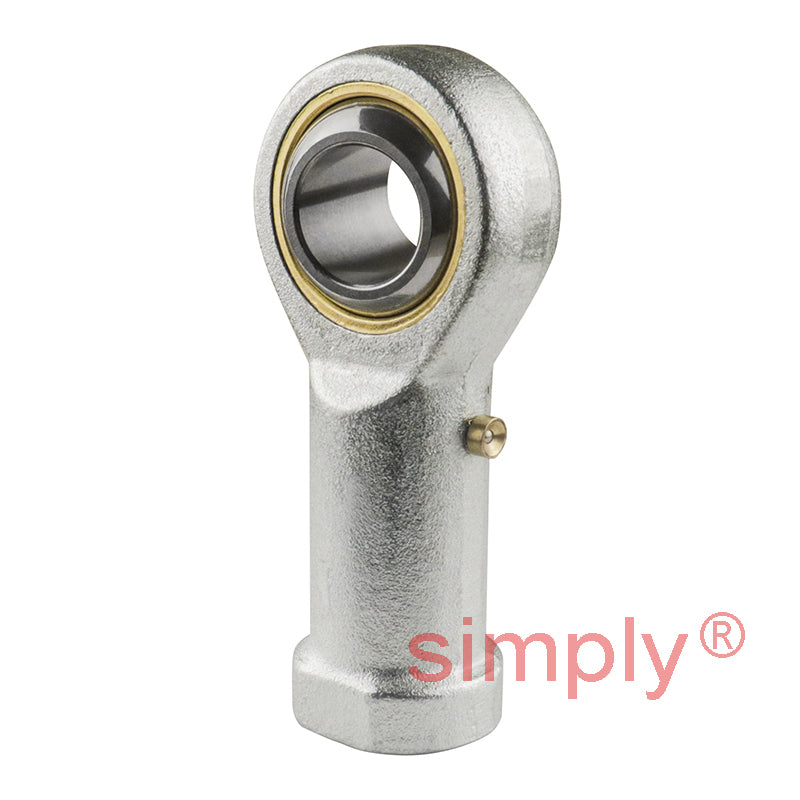

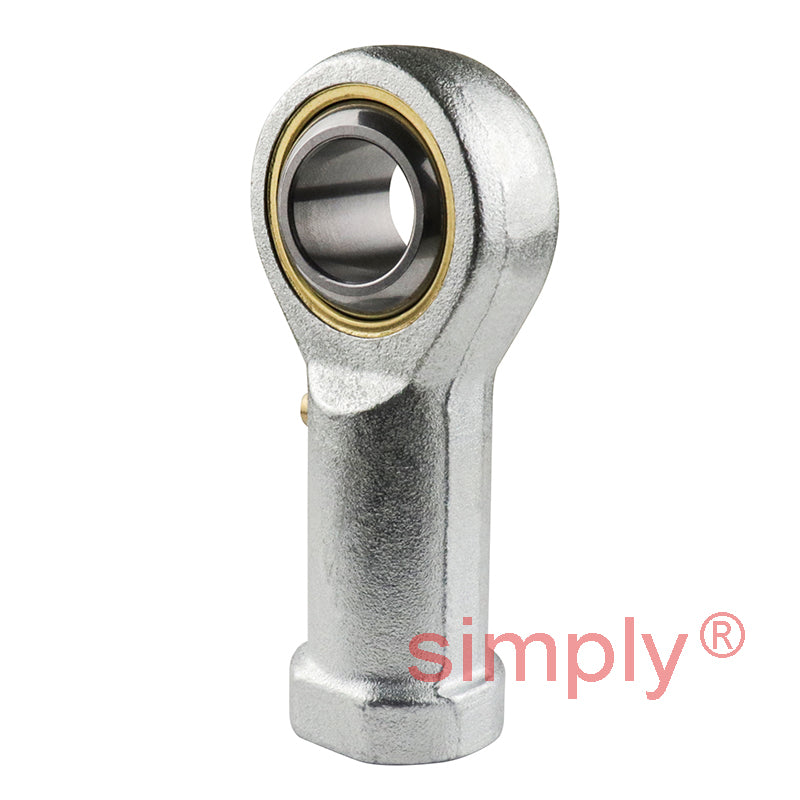

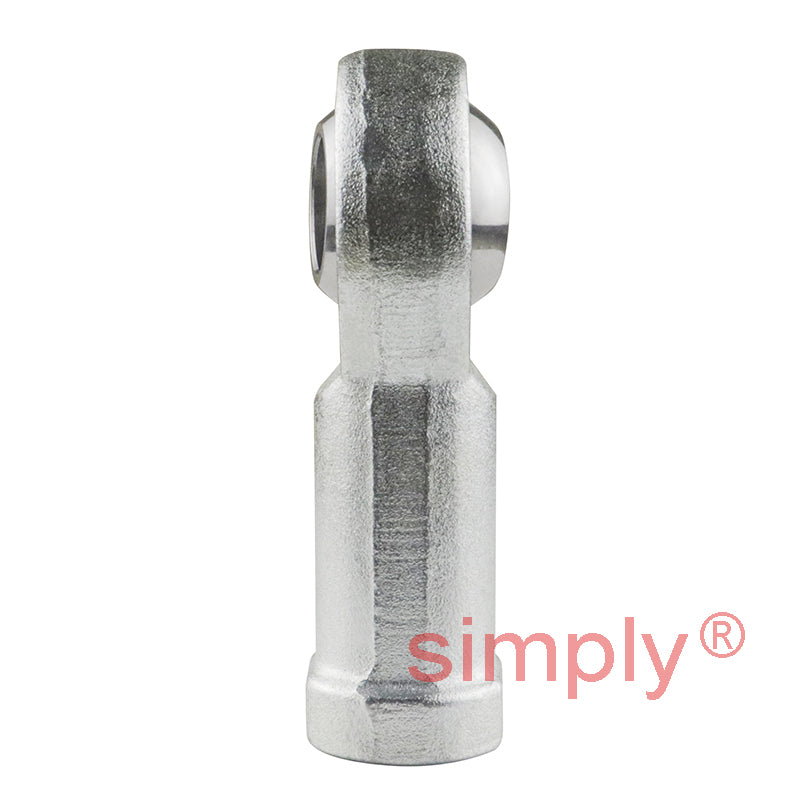

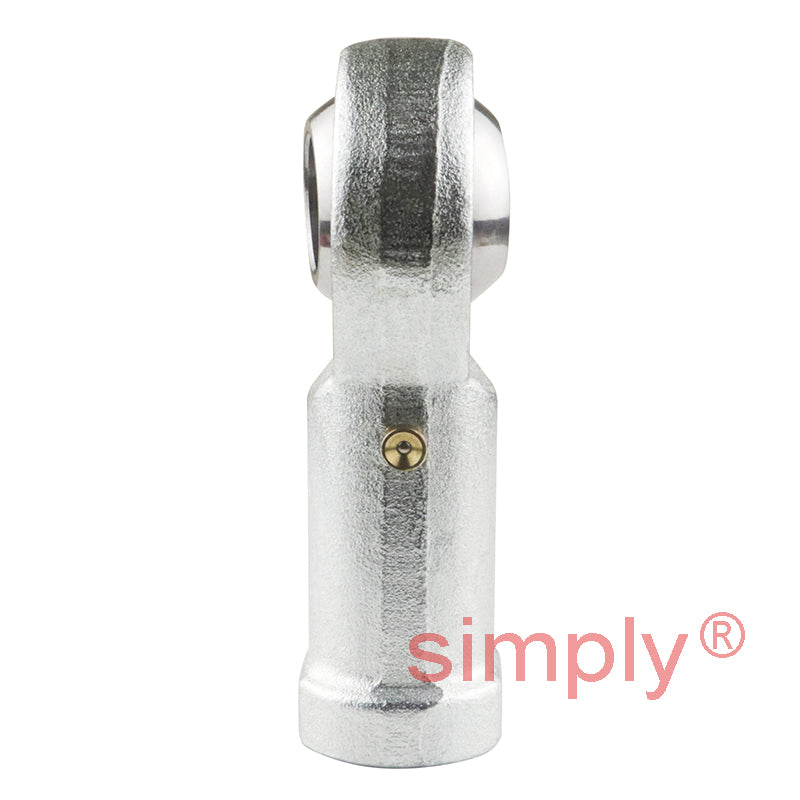

Branded FB-16CG Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M16x1.6 Thread
Branded FB-16CG Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M16x1.6 Thread
Regular price
€10,65
ex VAT
Regular price
Sale price
€10,65
ex VAT
In stock
Price Break
10+
€8,11
19+
€7,65
29+
€7,56
39+
€7,47
49+
€7,38
74+
€7,29
99+
€6,83
199+
€6,74
249+
€6,65
499+
€6,56
999+
€6,38
Description
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M16x1.6
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical
| Bore size | 16mm |
|---|---|
| Thread | M16x1.6 |
| W | 21mm |
| H | 15mm |
| D | 42mm |
| L1 | 64mm |
| L2 | 28mm |
| O | 22mm |
| AF | 22mm |
| Static load | 0.675 N |
