SKU: FBL-16-DUN

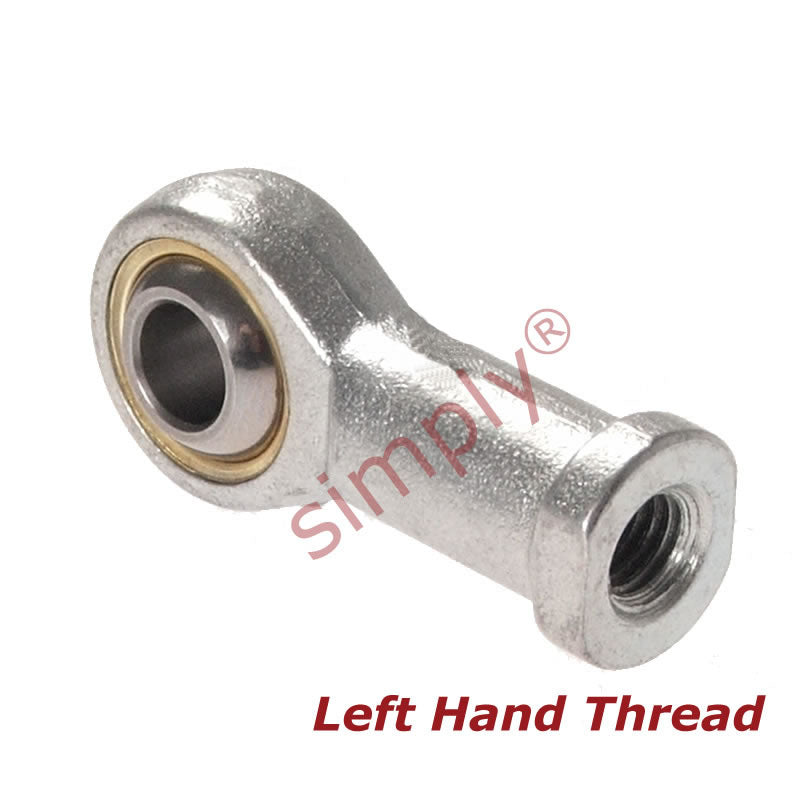

Dunlop FBL-16 Left Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 1 UNF Thread - Allow 7-10 Days
Dunlop FBL-16 Left Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 1 UNF Thread - Allow 7-10 Days
Regular price
€74,93
ex VAT
Regular price
Sale price
€74,93
ex VAT
Allow 7-10 Days
In stock
Price Break
10+
€66,69
19+
€62,94
29+
€62,19
39+
€61,44
49+
€60,69
74+
€59,94
99+
€56,20
199+
€55,45
249+
€54,70
499+
€53,95
999+
€52,45
Couldn't load pickup availability
Description
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- 1 UNF
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Liner Type:
- Bronze Lined
Technical
Technical
| Bore size | 1 inch |
|---|---|
| Thread | 1 UNF |
| W | 1.375 inch |
| H | 1 inch |
| D | 2.75 inch |
| L1 | 4.125 inch |
| L2 | 2.125 inch |
| O | 1.275 inch |
| AF | 1.5 inch |
| Static load | 47500 N |
