SKU: FBL-M10S-MB

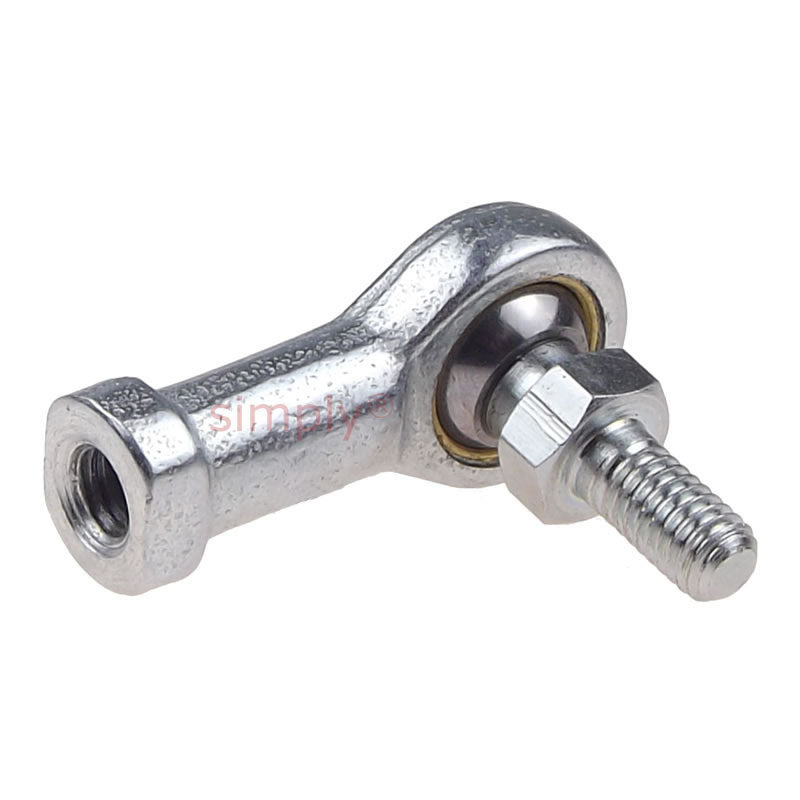

Branded FBL-M10S Left Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M10x1.5 Thread
Branded FBL-M10S Left Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M10x1.5 Thread
Regular price
€16,11
ex VAT
Regular price
Sale price
€16,11
ex VAT
Equivalent to: PHS10L+STUD
In stock
Price Break
10+
€12,28
19+
€11,59
29+
€11,45
39+
€11,31
49+
€11,17
74+
€11,04
99+
€10,35
199+
€10,21
249+
€10,07
499+
€9,93
999+
€9,66
Description
Description
|
FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear). Benefits: Low friction, extended wear life |
Equivalent: PHS10L+STUD
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M10x1.5
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Material:
- Bronze Lined
Technical
Technical
| Stud size | M10 |
|---|---|
| Thread | M10x1.5 |
| A | 20mm |
| B | 20mm |
| C | 18mm |
| K | 17mm |
| Static load | 4240 N |
