SKU: FC2.7/16-RHP

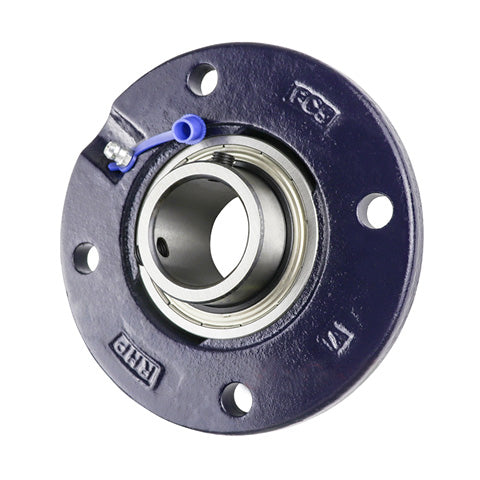

RHP FC2.7/16-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 2-7/16 inch Insert
RHP FC2.7/16-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 2-7/16 inch Insert
Regular price
€158,89
ex VAT
Regular price
Sale price
€158,89
ex VAT
In stock
Price Break
10+
€141,41
19+
€133,47
29+
€131,88
39+
€130,29
49+
€128,70
74+
€127,11
99+
€119,17
199+
€117,58
249+
€115,99
499+
€114,40
999+
€111,22
Couldn't load pickup availability
Description
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Style:
- FC
- Pitch Circle Diameter:
- 159.99mm = 6.299 inch
Technical
Technical
| Bore | 2-7/16 inch |
|---|---|
| L | 7.677 inch |
| H | 5.315 inch |
| J | 6.299 inch |
| G | 0.625 inch |
| A | 1.142 inch |
| A1 | 1.522 inch |
| A5 | 0.63 inch |
| B | 2.562 inch |
| s | 1.002 inch |
| d1 | 2.966 inch |
| Dynamic load | 48000 N |
| Static load | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 4.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-2-7/16G+insonly">1060-2-7/16G Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
