SKU: FC35-RHP

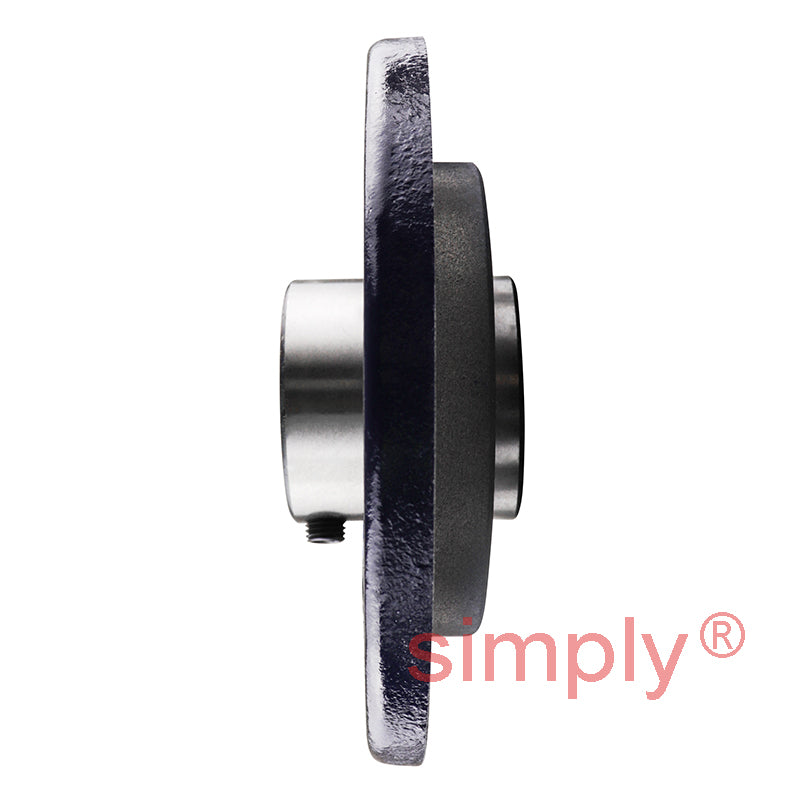

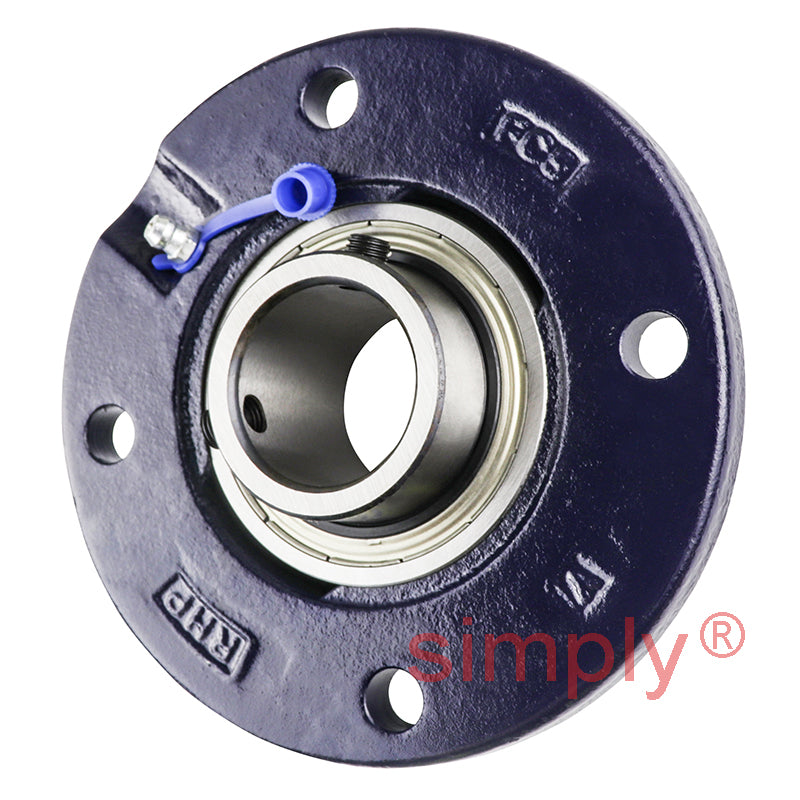

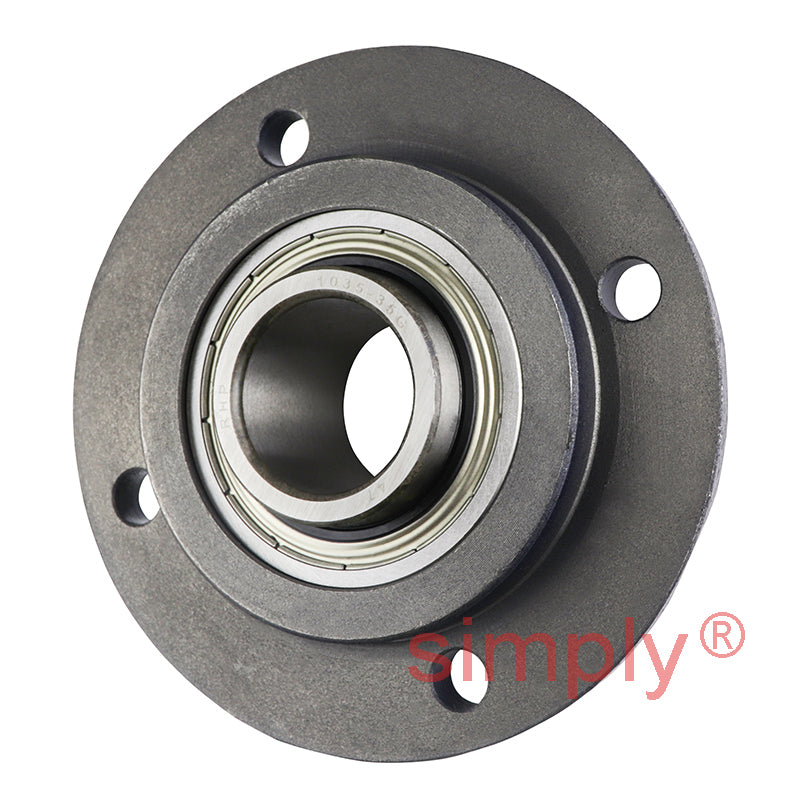

RHP FC35-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP FC35-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
Regular price
€72,87
ex VAT
Regular price
Sale price
€72,87
ex VAT
In stock
Price Break
10+
€64,85
19+
€61,21
29+
€60,48
39+
€59,75
49+
€59,02
74+
€58,30
99+
€54,65
199+
€53,92
249+
€53,20
499+
€52,47
999+
€51,01
Couldn't load pickup availability
Description
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- FC
- Pitch Circle Diameter:
- 110mm
Technical
Technical
| Bore | 35mm |
|---|---|
| L | 135mm |
| H | 90mm |
| J | 110mm |
| G | 10mm |
| A | 20.5mm |
| A1 | 24.4mm |
| A5 | 10mm |
| B | 42.88mm |
| s | 17.53mm |
| d1 | 46.69mm |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-35G+insonly">1035-35G Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
