SKU: FC50-RHP

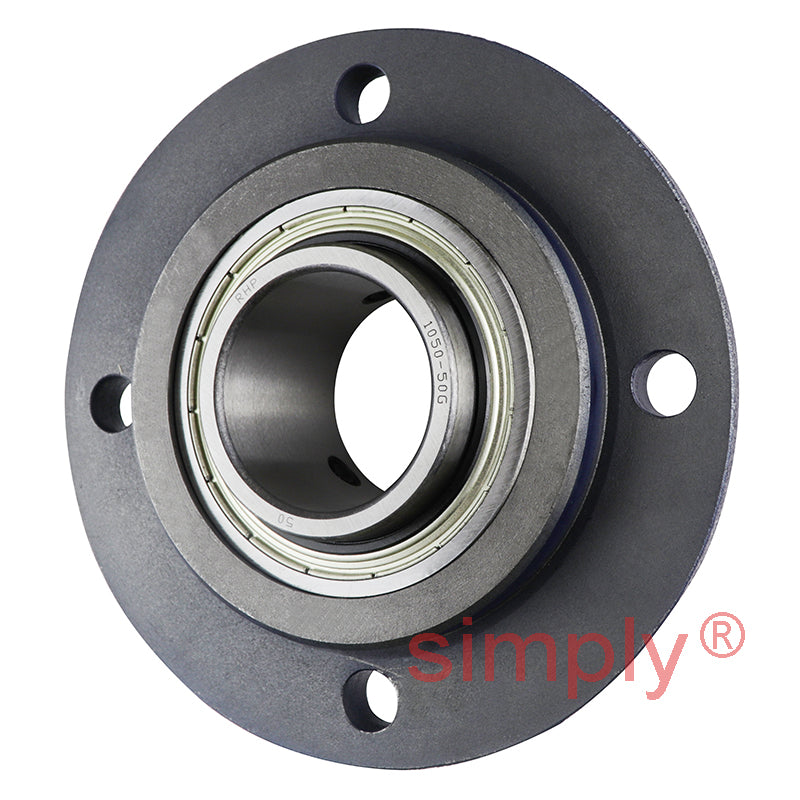

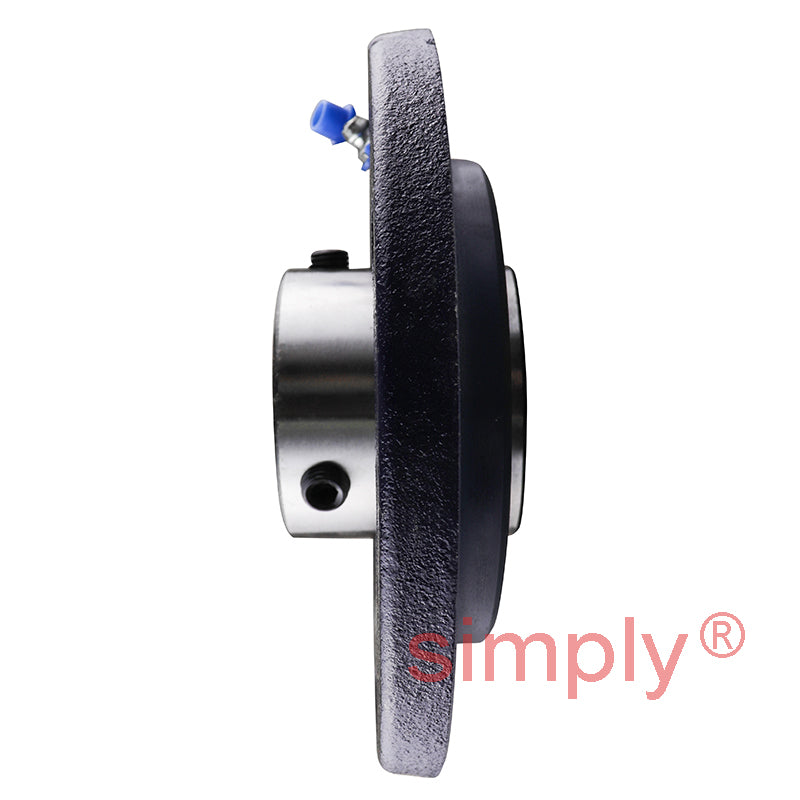

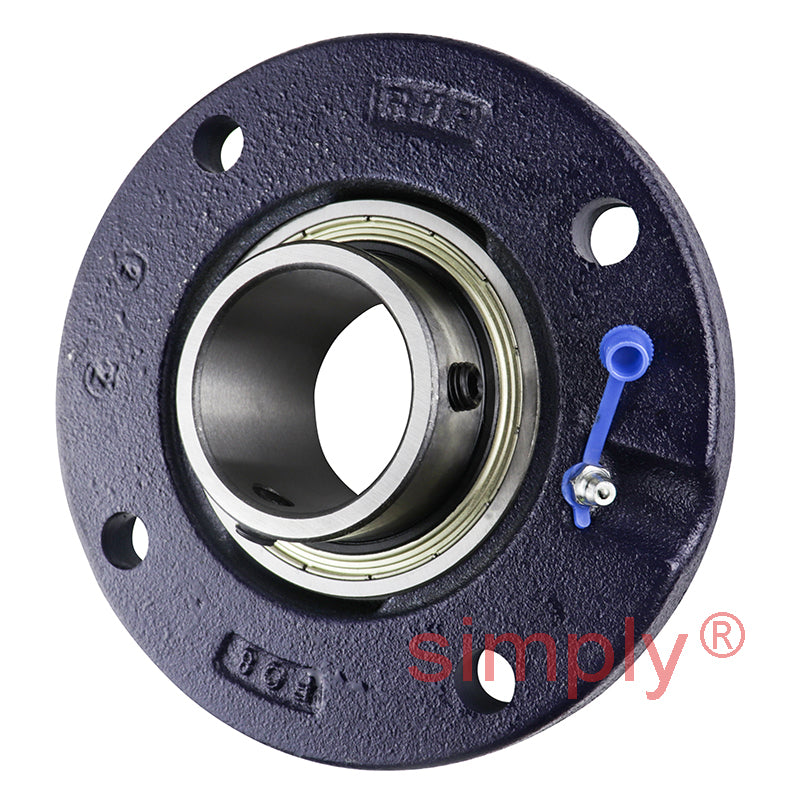

RHP FC50-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
RHP FC50-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
Regular price
€75,39
ex VAT
Regular price
Sale price
€75,39
ex VAT
In stock
Price Break
10+
€67,10
19+
€63,33
29+
€62,57
39+
€61,82
49+
€61,07
74+
€60,31
99+
€56,54
199+
€55,79
249+
€55,03
499+
€54,28
999+
€52,77
Couldn't load pickup availability
Description
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Style:
- FC
- Pitch Circle Diameter:
- 135mm
Technical
Technical
| Bore | 50mm |
|---|---|
| L | 165mm |
| H | 110mm |
| J | 135mm |
| G | 12mm |
| A | 25mm |
| A1 | 31.52mm |
| A5 | 13mm |
| B | 51.6mm |
| s | 19.04mm |
| d1 | 62.2mm |
| Dynamic load | 35000 N |
| Static load | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-50G+insonly">1050-50G Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
