SKU: FF2515

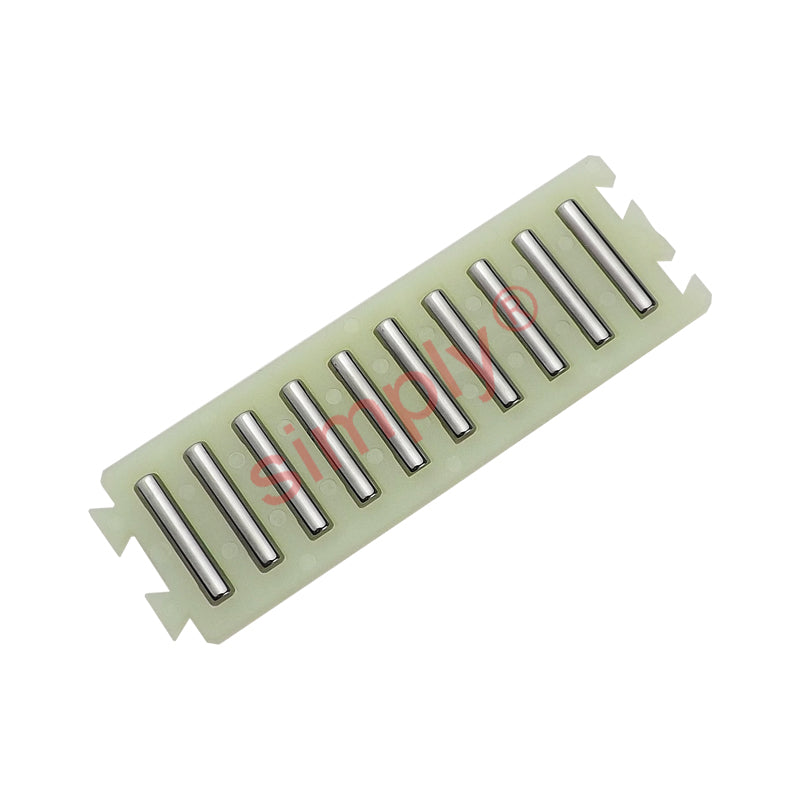

INA FF2515 Needle Roller Flat Cage 15mm Width x 45mm Length
INA FF2515 Needle Roller Flat Cage 15mm Width x 45mm Length
Regular price
€4,73
ex VAT
Regular price
Sale price
€4,73
ex VAT
In stock
Price Break
10+
€3,60
19+
€3,40
29+
€3,36
39+
€3,32
49+
€3,28
74+
€3,24
99+
€3,04
199+
€3,00
249+
€2,96
499+
€2,92
999+
€2,84
Description
Description
Needle Roller Flat Cages: Needle roller flat cages made up of numerous rolling elements. This ensures very high load capacities and precision. As the needle rollers are installed in a flat cage, needle roller flat cages use a small amount of space.
- Brand / Quality:
- INA - High Quality
- Width:
- 15mm
- Length:
- 45mm
Technical
Technical
| --- | Main Dimensions |
|---|---|
| l<sub>ke</sub> (Length) | 45mm |
| D<sub>W</sub> (Rolling element diameter) | 2.5mm |
| B (Width) | 15mm |
| T (Cage Thickness) | 2mm |
| C (Dynamic load capacity) | 32.7 kN |
| C<sub>0</sub> (Static load capacity) | 92.3 kN |
| Weight | 0.038kg |
| --- | Mounting Dimensions |
| E<sub>B</sub> | 15.3mm (+0.2 Tolerance) |
| E<sub>B1</sub> | 10mm |
| E<sub>H</sub> | 2.2mm |
| --- | Other |
| L<sub>W</sub> (Length rolling element) | 9.8mm |
| a<sub>k</sub> | 2.5mm |
| Z<sub>e</sub> (Number of rolling elements per row) | 8 |
| Associated Rail | J4025, S4025, J5025, S5025 |
